Repair
Repair Price: $ 492.00
Purchase
CSL Part Number: 80877

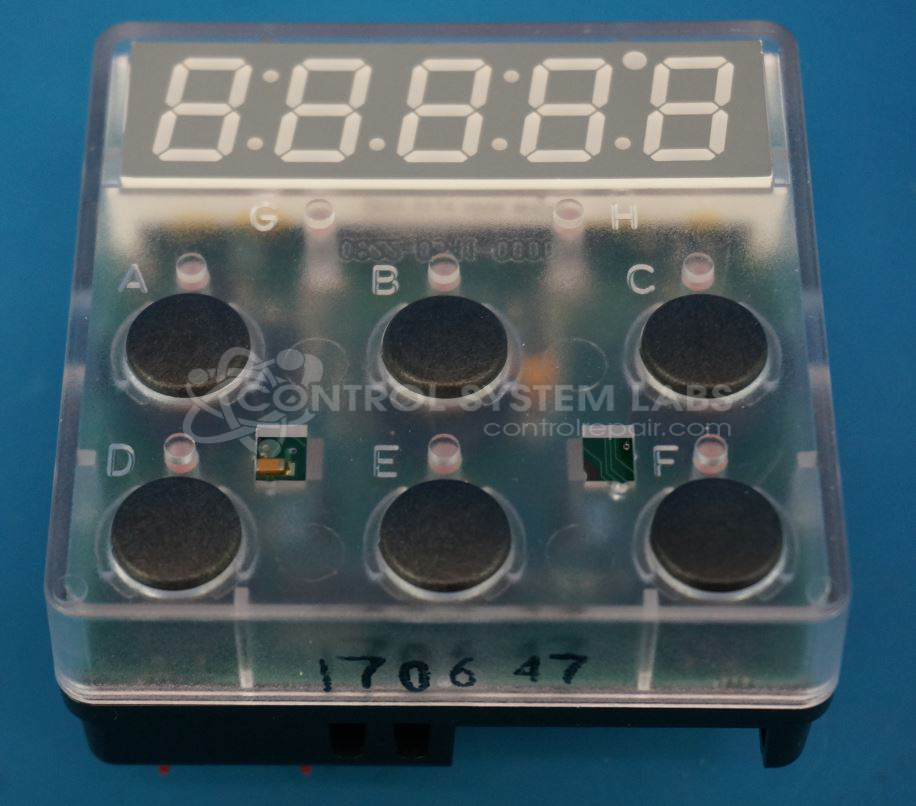

Product Overview: The Watlow F2HC-1111-11PF is a MiniChef 2000 Series cooking controller designed for commercial food service equipment. It provides precise temperature control using thermocouple inputs (Type K compatible) and relay or SSR outputs to manage heating elements. This controller features a digital display, push-button interface, and programmable timer functions. It is commonly found in commercial ovens, smokers, and cooking equipment such as Southern Pride units. The F2HC configuration includes solid-state relay driver outputs and operates on standard AC power with internal low-voltage power supply circuitry.
Category: Temperature Control
Manufacturer: Watlow
Manufacturer Part Number: F2HC-1111-11PF
Series: MiniChef 2000 Cooking Controller
Also Known As(AKA): F2HC SERIES
Please include the make a model of the equipment this unit was removed from.
Common Failures
This product has been received for repair with several types of issues, primarily related to display and button functionality. Problems reported have included non-functional displays, button malfunctions, and blinking indicator lights. Corrosion affecting the PCB, connectors, and traces has been observed in multiple cases. Failed components such as transistors have also been identified during evaluation.
Repair Approach
Repairs have involved replacing corroded or defective components, repairing broken traces, and reapplying conformal coating where needed. In some cases, power supply boards have been exchanged to restore functionality. Cleaning and refurbishment of corroded parts has also been performed. Some units have been evaluated as beyond economic repair due to unavailable preprogrammed components specific to certain configurations.
Testing & Quality
Repaired units are tested to verify functionality, including extended burn-in tests under load. Functions such as buttons, display outputs, and relays are checked during the testing process. Units that complete testing successfully are returned to service.
Service and repair your broken Watlow part
We can repair your Watlow model F2HC-1111-11PF in our facility. Let our skilled technicians get your Watlow back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
