Repair
Repair Price: $ 728.00
Purchase
CSL Part Number: 32578

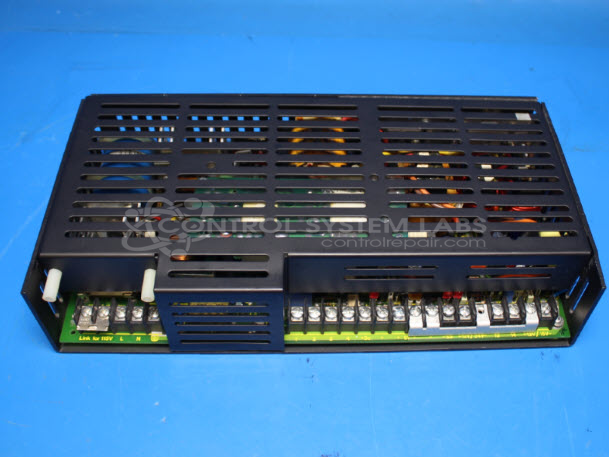

Product Overview: The WEIR SMM200NT-M23 is a multi-output switching mode power supply delivering +/-15VDC, +12VDC, and +5VDC rails. It provides regulated DC voltages for control and signal circuits in industrial automation equipment, commonly found in paper manufacturing and process control systems. The unit utilizes a TDA1060 SMPS control IC and features multiple output stages with independent regulation. This compact design integrates transformers, inductors, and filtering capacitors to convert AC input into stable, low-ripple DC outputs suitable for powering sensors, controllers, and interface electronics.
Category: Power Supply
Manufacturer: WEIR
Manufacturer Part Number: SMM200NT-M23
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
This product may experience issues such as no output voltage. Problems can include broken leads, component failures, or issues with semiconductors and control circuits.
Repair Approach
Our repair process typically involves inspection, resoldering connections as needed, and replacing defective components such as transistors and capacitors. Components may be secured for stability. We evaluate each unit to determine the appropriate repair steps.
Testing & Quality
We perform diagnostic testing to evaluate components such as semiconductors, capacitors, and magnetics. Following repair, units undergo testing under load conditions to confirm functionality. All outputs are tested to verify proper operation.
Service and repair your broken WEIR part
We can repair your WEIR model SMM200NT-M23 in our facility. Let our skilled technicians get your WEIR back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
