CSL Part Number: 5849

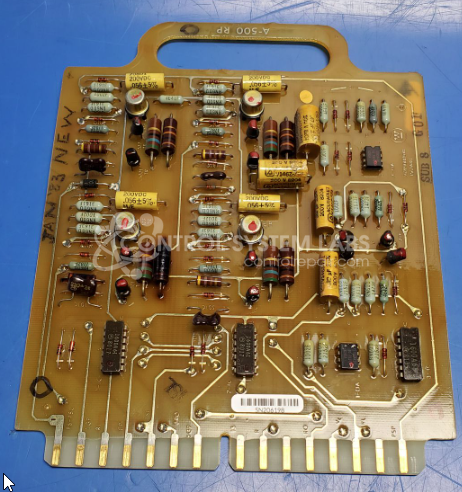

Product Overview: The Westinghouse A-500 RP is a power control module within the A-500 series system used for industrial process control applications. It functions as part of a multi-card control architecture alongside other A-500 modules including the PS (power supply), GPG (gate pulse generator), and SC (speed control) cards. This circuit board regulates power delivery in motor drive and speed control systems commonly found in paper manufacturing and other heavy industrial processes. The module contains discrete resistor networks and transistor circuits for power regulation and signal conditioning.
Category: Power Controls
Manufacturer: Westinghouse Electric
Manufacturer Synonyms: vectrol
Manufacturer Part Number: 212P108H01A
Also Known As(AKA): A-500 RP
Send in wiring diagram with the board
Common Failures
This product commonly experiences issues with burnt resistors, specifically a 100 Ohm resistor and a potential 470 Ohm resistor near significant components. These components are prone to burning, which can affect the overall functionality of the unit.
Repair Approach
The repair process involves replacing the burnt resistors with new ones. Diagnostic testing is performed using multimeters and other diagnostic tools to ensure all components function correctly after the replacement.
Testing & Quality
After repairs, the unit undergoes testing to confirm successful operation. This includes diagnostics with multimeters and other tools to verify that all components are in good condition and performing properly. All repairs are verified to pass the required quality testing levels.
Service and repair your broken Westinghouse Electric part
We can repair your Westinghouse Electric model 212P108H01A in our facility. Let our skilled technicians get your Westinghouse Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
