CSL Part Number: 87797

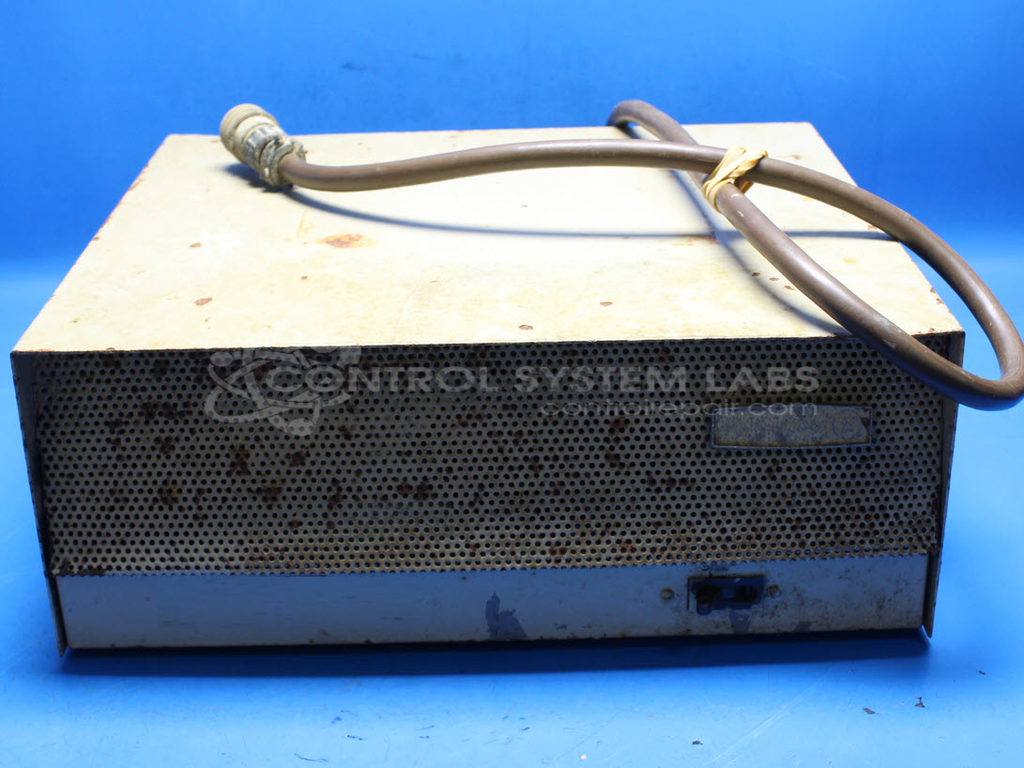

Product Overview: A 1KW ultrasonic generator power supply that converts line power into high-frequency drive signals, typically around 15.7 kHz, for ultrasonic cleaning tanks. It powers transducers used in industrial parts cleaning and degreasing systems, delivering regulated output into resistive-inductive loads via GTO SCR switching.
Category: Ultrasonic Generator / Cleaner
Manufacturer: Westinghouse Electric
Manufacturer Synonyms: vectrol
Manufacturer Part Number: 6506000C06
Common Failures
Units may experience issues such as tripping breakers on startup or failing to initiate properly. One potential cause is a shorted output component resulting from loose components leading to electrical arcing. Such issues may also damage related internal components.
Repair Approach
When units are evaluated and found to have these failures, repairs typically involve replacing the malfunctioning components and ensuring that all internal connections are secure. Specific tasks may include replacing faulty components, rewinding coils to factory specifications, and servicing mechanical parts such as fans for optimal function.
Testing & Quality
After repairs are completed, units undergo thorough testing to confirm proper operation. This includes checking operational stability and performance at specified frequencies. A final burn-in test is performed to verify reliability, confirming that the device outputs at the expected amplitudes and frequencies.
Repair your broken Westinghouse Electric part
We can repair your Westinghouse Electric model 6506000C06 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
