Repair
Repair Price: $ 1,984.00
Purchase
CSL Part Number: 111362

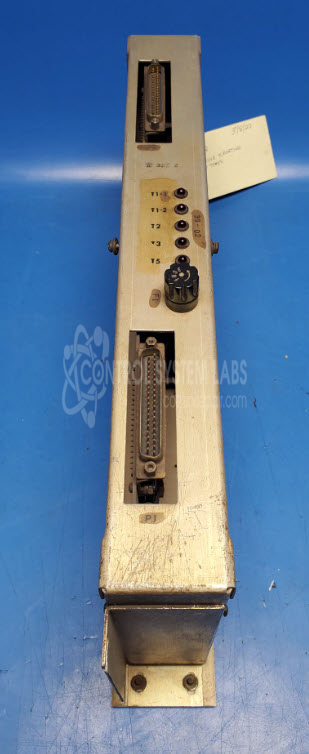

Product Overview: The Westinghouse GPA (Gate Pulse Amplifier Module) is a thyristor gate driver used in DC traction motor control systems, commonly found in transit rail vehicles. It accepts low-level pulse inputs and generates six independent high-current gate pulse outputs to trigger thyristors or SCRs in chopper circuits. The module consists of a main PCB with 555-based timing circuits, optocouplers, and output transistors, plus a daughter card providing regulated 10V and 35V power supplies through a switching regulator. Key components include MCT6 optocouplers that drive timing circuits, pulse transformers on outputs T1A, T1B, T2, T3, T5, and T6, and tantalum capacitors for filtering. Inputs and outputs connect via 37-pin D-sub connectors. Common failure modes include degraded optocouplers reducing current transfer ratio below trigger
Category: Power Controls
Manufacturer: Westinghouse
Manufacturer Part Number: GPA
Also Known As(AKA): 1117F57G04, 226P446
Service and repair your broken Westinghouse part
We can repair your Westinghouse model GPA in our facility. Let our skilled technicians get your Westinghouse back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
