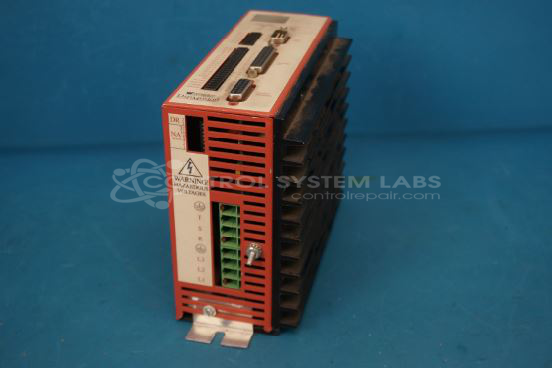

Whedco IMJ-313E-X-D 78006002 Jr Motor Drive DSP Motion Servo
Repair
Repair Price: $ 1,812.00
Purchase
CSL Part Number: 80216
Product Overview: A DSP-based motion servo drive that controls servo motor position, speed, and direction in automated machinery and paper industry equipment. Accepts 90-250V input and delivers 3A continuous output (6A peak), with configuration and tuning via dedicated software.
Category: Servo Controls
Manufacturer: Whedco
Alternate Manufacturer Names: GE Fanuc DSPMotion
Manufacturer Part Number: IMJ-313E-X-D 78006002
Also Known As(AKA): 78006002
Other Synonyms: GE Fanuc DSPMotion
90-250V input, 3Amps output (6Amps Peak)
Common Failures
Common issues include power loss, intermittent power supply problems, and motor errors such as over current faults. Instances of no power and motor issues followed by an over current error have been reported, sometimes accompanied by physical damage to motor cables.
Repair Approach
For verified issues, repairs often involve replacing faulty components and resoldering connections to restore functionality. In some cases, units may be determined to be Beyond Economic Repair. Specific repairs have included replacing defective transistors and resistors, as well as comprehensive testing to verify operational integrity before returning units to customers.
Testing & Quality
Repairs are validated through rigorous testing, including running motors in both directions and extended burn-in testing. Software-based diagnostic tools are employed to ensure units meet performance specifications before release. Units are returned to their original customer-specific configurations after successful testing.
Service and repair your broken Whedco part
We can repair your Whedco model IMJ-313E-X-D 78006002 in our facility. Let our skilled technicians get your Whedco back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
