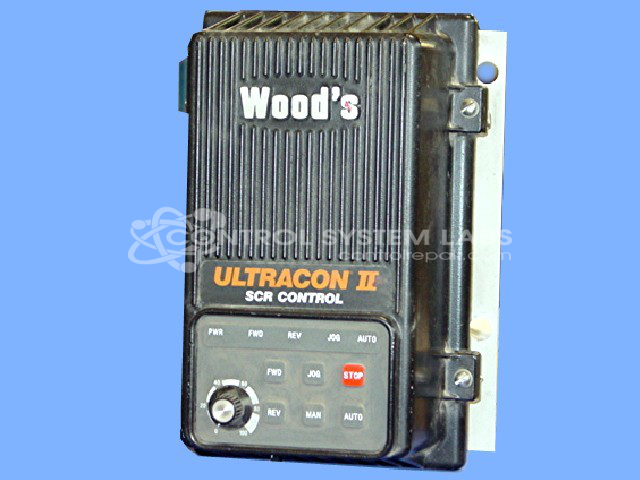

Woods D3C0020 Ultracon II 2 HP DC Motor Control

Repair

Repair Price: $ 632.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/43825/image_1920?unique=e7fd72b
  • Condition

Purchase Price: $ 0.00 $ 0.00 632.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 24817
Category: DC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Manufacturer Part Number: D3C0020
Series: ULTRACON II SCR CONTROL

Repair Approach

During evaluation, a control issue was reported. Upon inspection, a modification to the ribbon cable connected to the operator panel was identified. The repair included replacement of electrolytic capacitors to support reliable operation. Testing confirmed proper DC supply and system operation.

Testing & Quality

Following repair, the unit was tested in both manual and automatic modes. Testing confirmed successful restoration of functionality with no faults detected. Please refer to your equipment wiring diagrams to ensure proper connection for the auto mode feature.

Service and repair your broken Woods part


We can repair your Woods model D3C0020 in our facility. Let our skilled technicians get your Woods back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
