Home >  Woods E5B0015 E-Trol DC Motor 1.5 HP

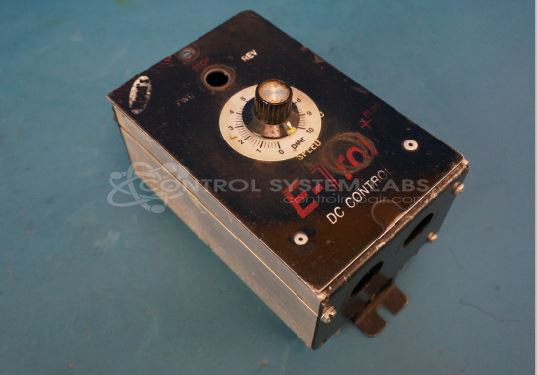

Woods E5B0015 E-Trol DC Motor 1.5 HP

Repair

Repair Price: $ 416.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/46719/image_1920?unique=209097e
  • Condition

Purchase Price: $ 0.00 $ 0.00 416.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 27803
Product Overview: A 1.5 HP DC motor speed control that converts AC line input to adjustable DC armature and field voltage for driving DC motors. Configurable for 115/230VAC input with selectable armature output up to 180VDC, speed potentiometer adjustment, and directional control. Common in paper handling and industrial drive equipment.
Category: DC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Manufacturer Part Number: E5B0015

Common Failures

Frequent issues with this product include power interruptions, malfunctioning or worn-out buttons, motor operation problems, and speed control difficulties. Specific problems have been traced to broken or worn components such as potentiometers, circuit traces, solder connections, capacitors, and resistors. Users have also experienced speed drift and device shutdowns when attempting to reach maximum output.

Repair Approach

Repairs typically involve replacing damaged components such as potentiometers, resistors, capacitors, and diodes. Broken traces on circuit boards are repaired, and loose connections are secured. In some cases, custom brackets are fabricated to stabilize components. After repairs, adjustments are made to ensure proper voltage and operation settings.

Testing & Quality

Each repair concludes with testing to verify that the device functions correctly. This includes operating the motor under load, conducting burn-in tests for extended periods, and confirming voltage and output are within specifications. Repairs are verified to ensure symptoms are resolved.

Service and repair your broken Woods part


We can repair your Woods model E5B0015 in our facility. Let our skilled technicians get your Woods back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
