Repair
Repair Price: $ 1,372.00
Purchase
CSL Part Number: 15771

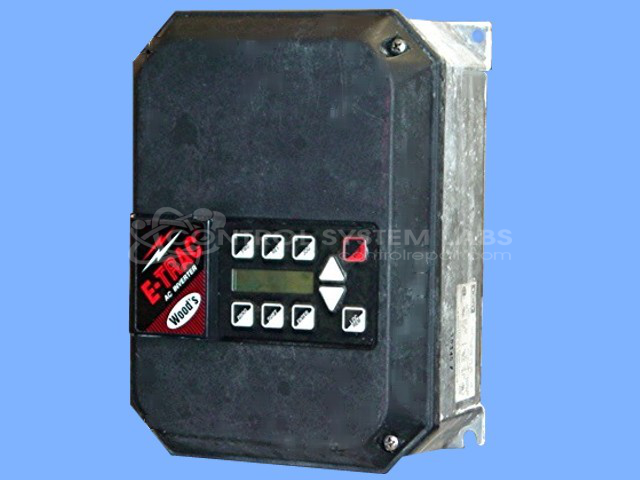

Product Overview: The Woods E-Trac WFC2002-0C is a 2 HP AC inverter motor drive designed for variable frequency control of three-phase AC motors. Part of the WFC Series, it provides adjustable speed operation for industrial machinery and process equipment. This compact drive features microprocessor-based control with an LCD display for programming and diagnostics. It is commonly used in pumps, fans, conveyors, and paper processing machinery where precise motor speed control is required. The unit operates from standard AC input voltage and includes built-in protections for overload, fault detection, and thermal management.
Category: AC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Alternate Manufacturer Names: FUJI
Manufacturer Part Number: WFC2002-0C
Series: E-TRAC WFC Series
Other Synonyms: FUJI
Common Failures
This product has experienced issues related to intermittent operation, display errors, and power supply failures. Common symptoms include non-functional LCD screens, F04 power supply failure alarms, and overheating within the power supply circuit.
Repair Approach
Repairs have focused on replacing defective components, such as capacitors, fans, power resistors, and addressing control board issues. In several cases, particle shorts on the control board have necessitated board replacement. Replacing defective capacitors and resistors has been a frequent solution.
Testing & Quality
Diagnostic and burn-in testing is performed to verify functionality, including running devices for multiple hours with load and in various operational directions. Quality checks include performing diagnostic tests to address intermittent issues where possible. Please note that not all input/output tests may be completed during evaluation. Units are tested and repaired according to CSL standard procedures.
Service and repair your broken Woods part
We can repair your Woods model WFC2002-0C in our facility. Let our skilled technicians get your Woods back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
