Repair
Repair Price: $ 1,372.00
Purchase
CSL Part Number: 15773

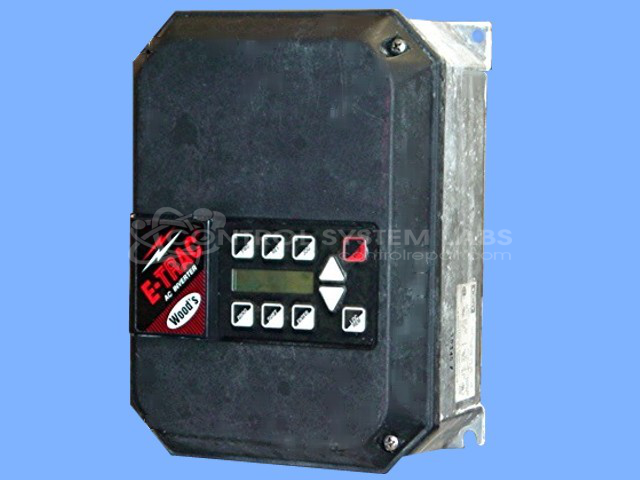

Product Overview: The Woods E-Trac WFC2003-0C is a 3 HP AC inverter motor drive used for variable speed control of three-phase AC motors in industrial applications. It features adjustable frequency output up to 400 Hz, digital input controls for forward/reverse/jog functions, and an LED display for operational feedback. Commonly found in paper handling, packaging, and general automation equipment, this drive provides precise motor speed regulation through pulse-width modulation control. The unit requires an external 24 VDC power supply for control logic operation.
Category: AC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Alternate Manufacturer Names: FUJI
Manufacturer Part Number: WFC2003-0C
Series: E-TRAC WFC Series
Other Synonyms: FUJI
Common Failures
Common issues reported include intermittent operation, failure to power up fully, LED indicators fading, and display problems. These conditions may be associated with capacitor degradation or component-level failures.
Repair Approach
The repair process typically involves component-level evaluation and replacement of defective parts as identified during inspection. Work may include replacing capacitors, diodes, driver chips, or other components, and in some cases replacing circuit boards. Each unit is evaluated individually to determine the appropriate repair scope.
Testing & Quality
Following repair, units undergo diagnostic testing to verify proper operation. Testing procedures may include extended run time under load conditions and verification of display and control functions. Repairs are reviewed by experienced technicians to ensure quality standards are met.
Service and repair your broken Woods part
We can repair your Woods model WFC2003-0C in our facility. Let our skilled technicians get your Woods back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
