Repair
Repair Price: $ 2,540.00
Purchase
CSL Part Number: 15777

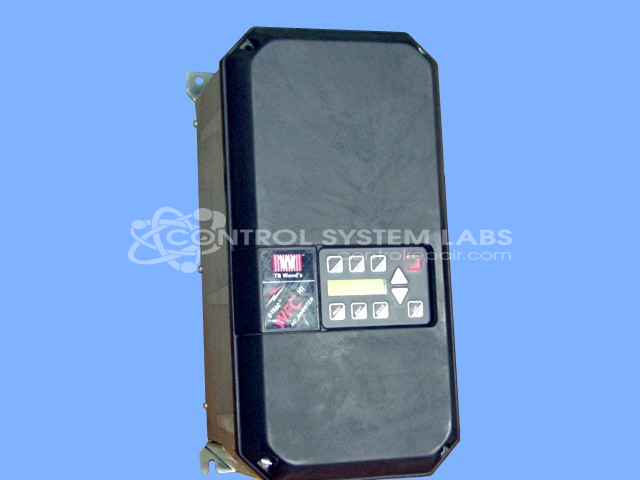

Product Overview: The Woods E-Trac WFC2007-5C is a 7.5 HP AC inverter motor drive designed for variable speed control of three-phase induction motors. Part of the WFC Series (also sold under FUJI branding), it provides adjustable frequency output to control motor speed and torque in industrial applications. Common uses include pumps, conveyors, fans, and paper processing equipment. The drive features keypad programming, local/remote operation modes, and protection functions including DC bus voltage monitoring.
Category: AC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Alternate Manufacturer Names: FUJI
Manufacturer Part Number: WFC2007-5C
Series: E-TRAC WFC Series
Other Synonyms: FUJI
Common Failures
This product has experienced issues primarily related to component wear and solder joint connections. Common symptoms include power-up failures without display and fault codes indicating DC bus voltage problems. Specific issues have been linked to capacitor degradation and solder joint integrity affecting component connections.
Repair Approach
Repairs typically involve replacing worn components and addressing solder connections to restore proper function. Diagnostic testing is conducted to identify faulty connections, and component replacements are made as needed based on evaluation findings.
Testing & Quality
After repairs, each unit undergoes functional testing with a motor to verify operational performance. This includes verification of control functions, confirming proper motor operation in various modes, and ensuring that customer settings are preserved where possible. Units are tested to CSL quality standards before return to the customer.
Service and repair your broken Woods part
We can repair your Woods model WFC2007-5C in our facility. Let our skilled technicians get your Woods back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
