Repair
Repair Price: $ 664.00
Purchase
CSL Part Number: 13743

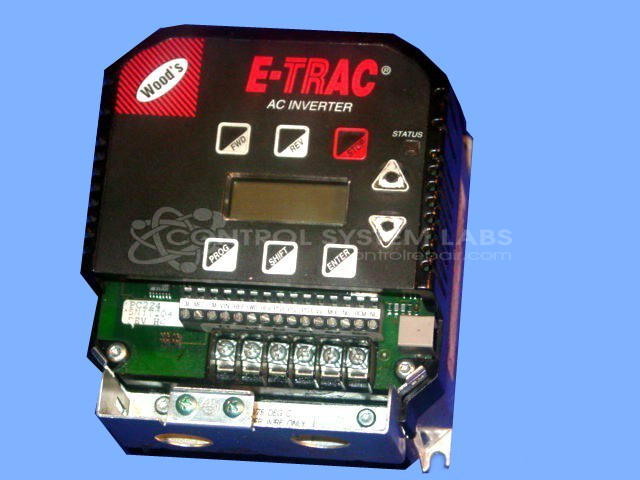

Product Overview: The Woods XFC2005-0B is a 5 HP micro inverter rated for 230VAC input, part of the XFC Series Micro-Inverter E-TRAC line. It controls AC motor speed and torque in industrial applications by converting fixed-frequency AC power to variable-frequency output. The unit includes an integrated keypad for parameter programming and operational control. This compact inverter is commonly used in material handling, packaging, and general-purpose machinery where space-constrained installations require reliable motor control with on-board interface capabilities.
Category: AC Motor Controls
Manufacturer: Woods
Manufacturer Synonyms: FUJI, TB Woods, T.B.Woods, Wood's
Manufacturer Part Number: XFC2005-0B
Series: XFC Series Micro-Inverter E-TRAC
Common Failures
Reported issues have included units displaying an F05 error and failure to power on. The F05 error has been associated with no bus voltage being detected, while power-on failures have been linked to issues in the input bridge section of the IGBT module. Physical inspection has also revealed external contaminants such as metal shavings in some units.
Repair Approach
Diagnostic testing has included checking bus voltages and signal integrity using specialized equipment. Challenges have included difficulty in accessing and testing internal components. In some cases, units have been determined to be beyond economic repair due to parts unavailability or the extent of labor required.
Testing & Quality
Units that failed ongoing testing procedures have shown symptoms consistent with no power or signal discrepancies. Following thorough evaluation, some units have been determined to be not economically repairable.
Service and repair your broken Woods part
We can repair your Woods model XFC2005-0B in our facility. Let our skilled technicians get your Woods back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
