CSL Part Number: 85586

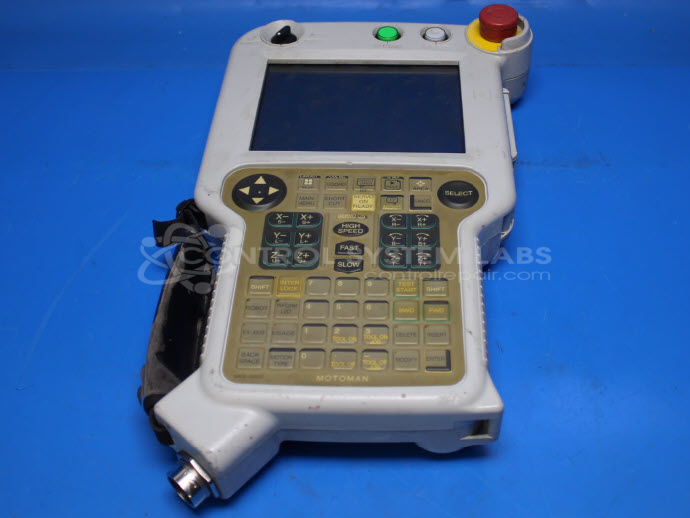

Product Overview: The NX100 Pendant (JZRCR-NPP01-1) is a teach pendant control interface for Yaskawa NX100 robot controllers. It provides manual control and programming capabilities for industrial robotic systems used in welding, material handling, assembly, and other automated manufacturing applications. The pendant features a membrane keypad with function buttons, emergency stop, and integrated display for robot position monitoring and program editing. It connects directly to the NX100 controller cabinet and serves as the primary operator interface for robot setup, jogging, and program development.
Category: Pendant
Manufacturer: Yaskawa
Manufacturer Synonyms: MagneTek magnatek
Manufacturer Part Number: JZRCR-NPP01-1
Common Failures
This product commonly experiences issues with non-functional buttons and a faulty emergency stop (E-Stop) button. Additionally, defective rubber keypad overlays and internal chips have been identified as contributing factors.
Repair Approach
The repair process typically involves replacing the non-functional or faulty components, including the keypad membrane and the emergency stop switch. Other internal components, such as specific processing chips, may also be replaced as needed.
Testing & Quality
Post-repair testing includes basic component and power-up tests to verify that the keypad functions and displays the model number on screen. Time and Materials work is billed for labor and material spent attempting repair and is not warrantied.
Service and repair your broken Yaskawa part
We can repair your Yaskawa model JZRCR-NPP01-1 in our facility. Let our skilled technicians get your Yaskawa back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
