Yaskawa JZRCR-XC002B Control Unit

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/69621/image_1920?unique=59f9430
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 86006

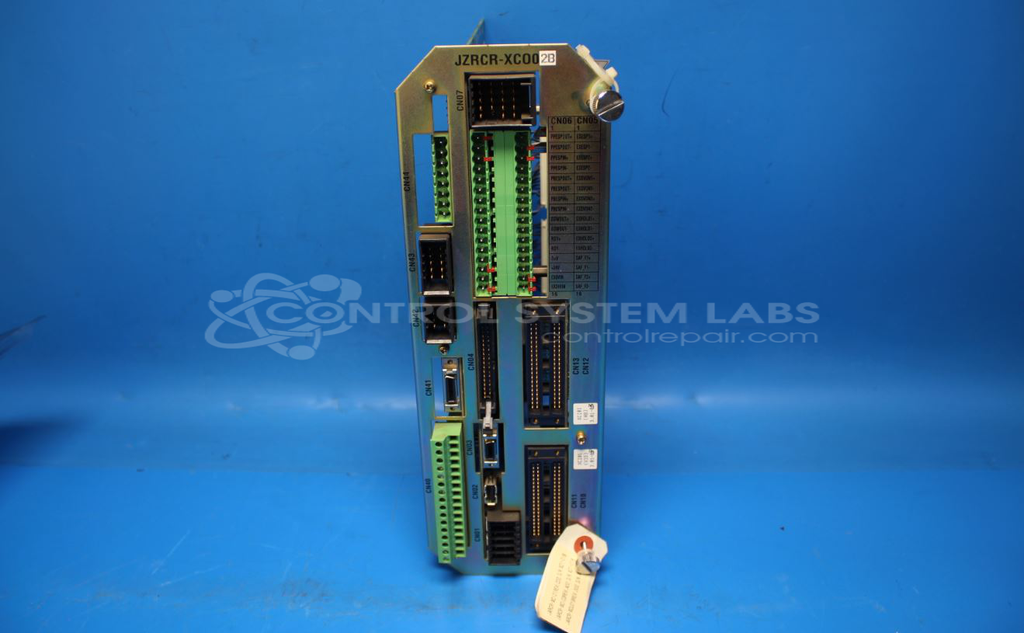

Product Overview: A control circuit board used in industrial robot controllers, interfacing the teach pendant and safety circuitry. It manages pendant communication through dedicated connectors and processes dead-man switch signals via quad opto-isolators and relay-driven safety logic for servo-driven robotic systems.
Category: Servo Controls
Manufacturer: Yaskawa
Manufacturer Synonyms: MagneTek magnatek
Manufacturer Part Number: JZRCR-XC002B

Common Failures

The unit experienced issues with CN43 communication and the functionality of the dead man switch. Burnt circuit traces leading to a relay were identified as a primary cause of these failures. Additionally, the dead man switch circuitry and suspect opto-isolators were a concern.

Repair Approach

Repairs involved replacing damaged circuit traces and testing relay contacts. The dead man switch circuitry was thoroughly traced to identify and verify the function of associated opto-isolators. Opto-isolators were replaced to address reliability concerns.

Testing & Quality

Post-repair testing included applying external voltage, checking relay functionality, and verifying the operation of integrated circuits. These steps confirmed that all components operated correctly.

Service and repair your broken Yaskawa part


We can repair your Yaskawa model JZRCR-XC002B in our facility. Let our skilled technicians get your Yaskawa back in operation quickly.
