Repair
Repair Price: $ 1,254.00
Purchase
CSL Part Number: 80237

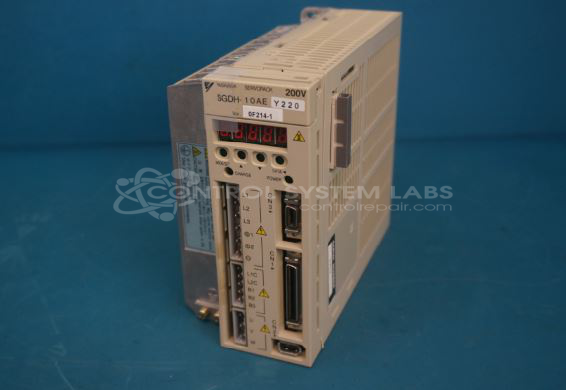

Product Overview: The Yaskawa SGDH-10AE is a servo amplifier from the SGDH series, designed to drive AC servo motors in precision motion control applications. It provides closed-loop control using encoder feedback to achieve accurate positioning, velocity, and torque control. Commonly found in CNC machines, industrial automation equipment, and manufacturing machinery, it communicates via digital interface and requires parameter configuration to match specific motor models. The unit accepts standard industrial control signals and features built-in diagnostics with error code display capabilities.
Category: Servo Controls
Manufacturer: Yaskawa
Manufacturer Synonyms: MagneTek magnatek
Manufacturer Part Number: SGDH-10AE Y220
Repair requires your motor and cable.
Common Failures
Units may exhibit error codes such as AC9, A05, and CPF00, which can indicate encoder communication errors or configuration discrepancies. These conditions may occur during initial setup or due to parameter settings.
Repair Approach
Evaluation and repair may include replacing electrolytic capacitors as needed. Parameter configuration is performed using appropriate software tools. Communication-related issues are addressed by inspecting cable connections and verifying wiring integrity.
Testing & Quality
Repaired units undergo power-on testing and input/output verification, including servo enable and inhibit functions. Parameter configuration is confirmed during the repair process. Final operational verification in the customer's application remains the responsibility of the customer.
Service and repair your broken Yaskawa part
We can repair your Yaskawa model SGDH-10AE Y220 in our facility. Let our skilled technicians get your Yaskawa back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
