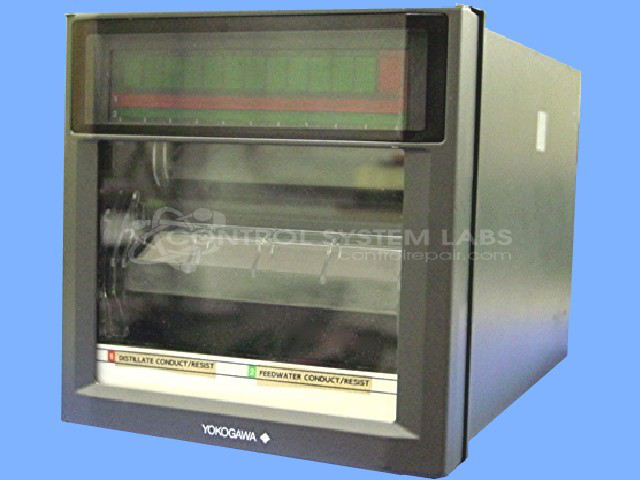

Yokogawa 436002 uR1000 Chart Recorder

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/81683/image_1920?unique=6bc5dd2
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 56243
Category: Chart Recorder / Data Logger
Manufacturer: Yokogawa
Manufacturer Part Number: 436002
Also Known As(AKA): BARBER COLMAN

Common Failures

Units have been received with issues related to plotter pen movement and associated components. Reported symptoms have included loose plotter pen belts, broken retaining tabs on the chart cassette assembly, and plotter assembly malfunctions.

Repair Approach

Repairs have involved reconnecting the plotter pen belt to the pulley system, replacing the chart cassette assembly when tabs are broken, and installing new CPU components with reprogramming as needed. In some cases, the plotter assembly has been replaced to restore functionality. These repairs address pen alignment and operational performance.

Testing & Quality

Following repair, comprehensive testing is conducted, which may include extended run testing, display verification, and input checks. Calibration is verified using professional reference equipment to ensure accuracy. Function checks, circuit analysis, and adjustments are performed to verify the unit's performance.

We do NOT offer repair on this item

Unfortunately, Control System Labs does NOT offer repair for the Yokogawa part number .  Here are some possible reasons:

  • the parts may no longer be available
  • the item may be encased in plastic epoxy
  • we do not have the necessary equipment to do the repair.

Please contact the manufacturer of this part number to see if a new part number or compatible replacement is available.
