CSL Part Number: 86942

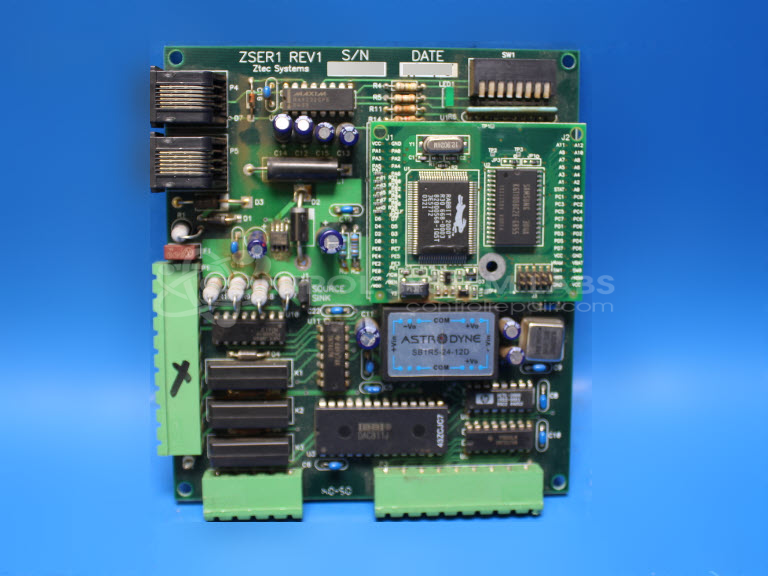

Product Overview: The Z-World ZSER1 Rev 1 is a control board featuring a Rabbit 2000 microprocessor, designed for industrial automation and control applications. It includes DC-DC power conversion circuitry, RS-232 serial communication via MAX232 interface, and operates on TTL logic levels with ±12V and 5V power rails. Commonly found in hydraulic control systems and equipment requiring programmable embedded control, it provides digital I/O and status indication through onboard LEDs. The board is part of Z-World's (also known as Piranha) ZSER series of embedded controllers used in various industrial and manufacturing equipment.
Category: Control Module
Manufacturer: Z-World
Manufacturer Synonyms: Rabbit Semiconductor, Digi International
Alternate Manufacturer Names: Piranha
Manufacturer Part Number: ZSER1 Rev 1
Other Synonyms: Piranha
Common Failures
This control system may experience issues including loss of output signal to hydraulics or drift on startup. The status display may indicate "drive disabled" when a fault is present.
Repair Approach
We evaluate each unit to identify the specific fault condition. Repair approaches may include component-level diagnosis, verification of voltage levels and logical connections, and replacement of failed components when feasible. Some repairs may not be possible if critical components such as pre-programmed microprocessors are unavailable.
Testing & Quality
Each unit undergoes diagnostic testing to verify proper operation before being returned to the customer. Our evaluation process includes visual inspection, component-level testing, and functional verification where applicable.
Repair your broken Z-World part
We can repair your Z-World model ZSER1 Rev 1 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
