Z-World ZSER2 Rev 2 Control Board
Repair
Call for price
Purchase
CSL Part Number: 105481

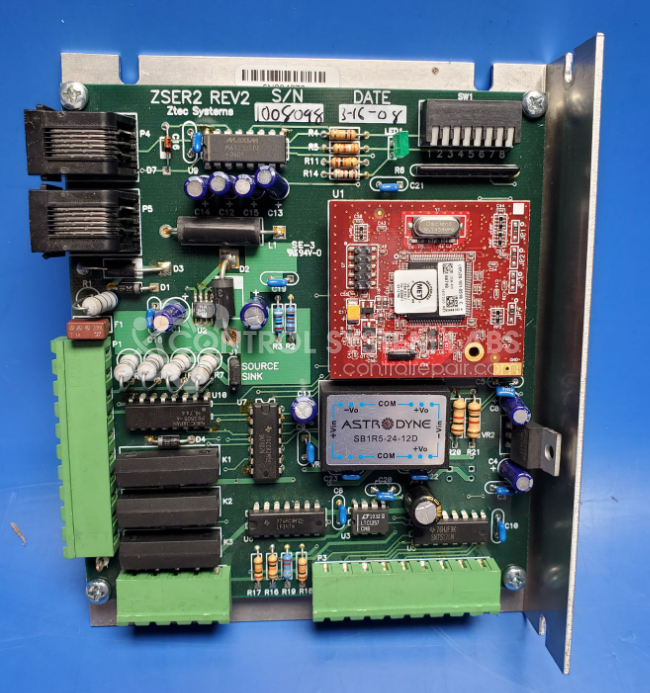

Product Overview: The ZSER2 Rev 2 is a control board manufactured by Z-World (also known as Piranha) used in hydraulic control systems. It is part of the Gold Series control system family and provides signal output to hydraulic equipment. The board features a dual-output DC-DC converter (±12V), operates on 22.8-25.2V input, and includes onboard voltage regulation for 5V and 3.3V systems. It is commonly found in industrial machinery requiring precise hydraulic control.
Category: Control Module
Manufacturer: Z-World
Manufacturer Synonyms: Rabbit Semiconductor, Digi International
Alternate Manufacturer Names: Piranha
Manufacturer Part Number: ZSER2 Rev 2
Other Synonyms: Piranha
Common Failures
The Piranha gold series control system may encounter issues such as no output signal to hydraulics and drifts on startup. These symptoms can suggest problems with the DC-DC converter or solder joint defects.
Repair Approach
We inspect components such as the DC-DC converter and solder joints during evaluation. Defective components are replaced as needed, and proper solder application is verified as part of the repair process.
Testing & Quality
Post-repair, the system undergoes testing to verify functional voltage levels throughout the board, including the DC-DC converter outputs, bypass capacitors, and logic circuits. Burn-in tests are performed to confirm system reliability under standard conditions before the unit is returned.
