CSL Part Number: 119472

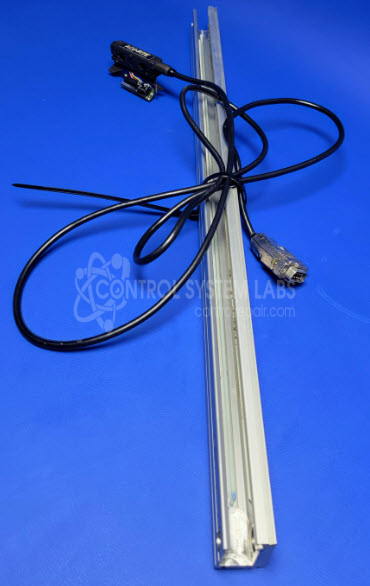

Product Overview: The ACU-RITE 3852022600 is a linear scale encoder used for precise position measurement in machine tools and automated manufacturing equipment. It consists of a graduated scale track and a reader head assembly that generates digital position feedback signals. Commonly found in CNC mills, lathes, grinders, and coordinate measuring machines, it provides accurate linear displacement data to motion controllers for closed-loop positioning. The system requires proper alignment between the scale and reader head with a critical metal guide component maintaining the correct air gap for reliable operation.
Category: Encoders / Tachometers / Resolvers
Manufacturer: ACU-RITE
Manufacturer Synonyms: HEIDENHAIN, ACU RITE

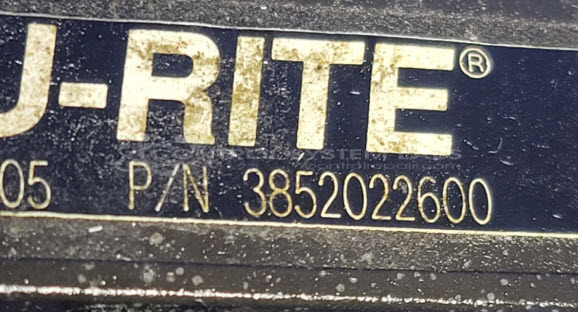

Manufacturer Part Number: 3852022600
Do not disassemble when sending in, make sure all covers and seals are included.
Common Failures

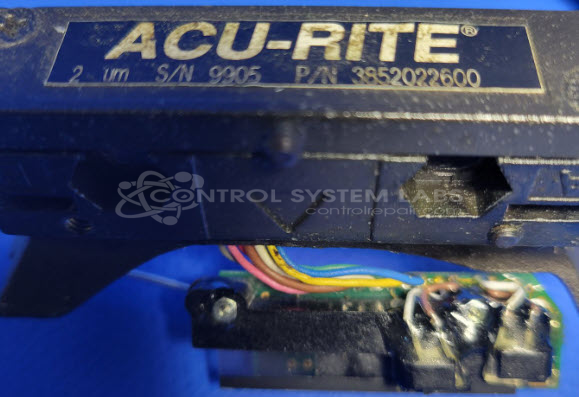

One of the known issues with this product involves the encoder and its associated components. Specifically, the metal guide of the scale reader head is prone to damage, often breaking off or becoming detached.
Repair Approach
The broken metal guide on the scale reader head is typically not repairable. If the unit is received for evaluation, we can review the condition and provide options. Customers should be aware that this component may require replacement depending on the application requirements.
Limited Repair
The ACU-RITE part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your ACU-RITE part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
