Repair
Repair Price: $ 500.00
Purchase
CSL Part Number: 85113

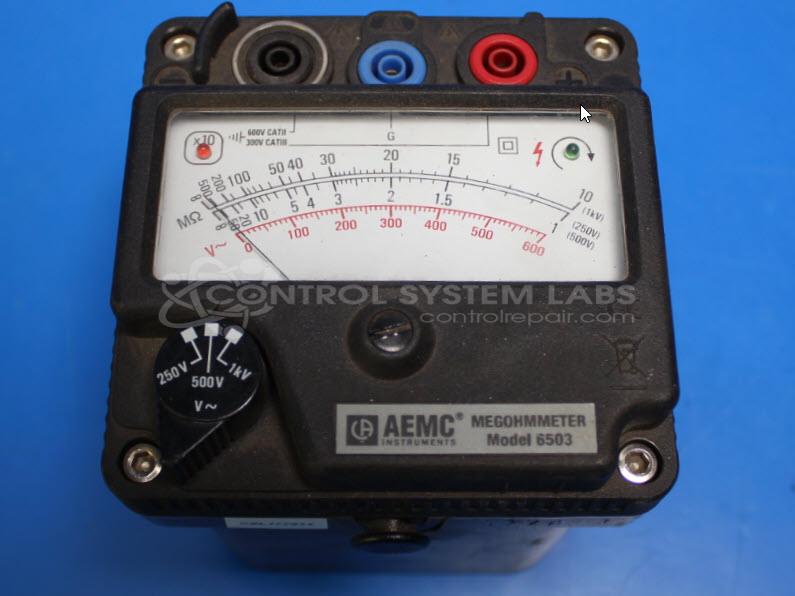

Product Overview: A hand-crank megohmmeter used to measure high insulation resistance for electrical safety and maintenance testing. Featuring an analog meter display and test probe leads, it applies high DC test voltage to verify insulation integrity in motors, cables, transformers, and other electrical equipment.
Category: Test Equipment
Manufacturer: AEMC Instruments
Manufacturer Part Number: 6503
Common Failures
The AEMC Megometer may encounter issues where it reads infinity due to problems such as a sticking red probe or a damaged meter zero mechanism on the front panel. These issues can prevent the device from operating correctly and are common reasons units are sent to CSL for evaluation.
Repair Approach
Repair efforts may involve addressing the malfunctioning meter, such as replacing the front glass and bezel or resolving broken probe connections. In some instances, electrolytic capacitors are replaced to restore functionality. Our technicians follow a careful evaluation and repair process for each unit.
Testing & Quality
Post-repair testing includes using a resistor jig and conducting a burn-in period of one hour. These tests verify proper functionality before the unit is returned. This testing process helps confirm the quality of the repair work.
Repair your broken AEMC Instruments part
We can repair your AEMC Instruments model 6503 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
