Repair
Repair Price: $ 772.00
Purchase
CSL Part Number: 36601

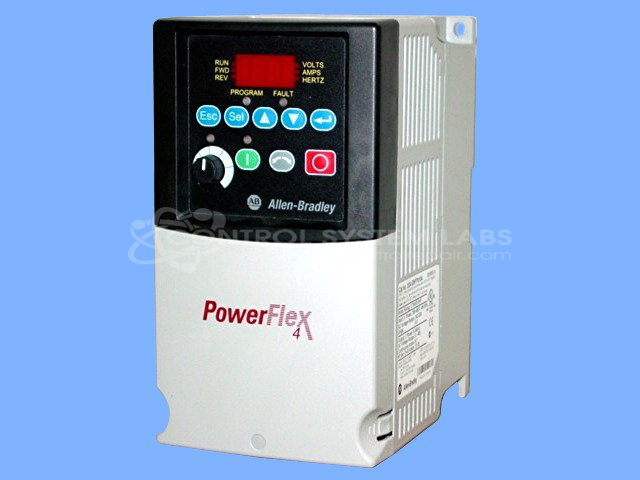

Product Overview: The PowerFlex 4 22A-D8P7N104 is an AC variable frequency drive rated for 480VAC three-phase input and 5 HP motor control. It provides adjustable speed control for three-phase induction motors in industrial automation applications including conveyors, pumps, fans, and material handling equipment. This drive features programmable parameters for start source, acceleration/deceleration rates, and motor protection. The unit includes overvoltage protection and parameter lock functions to prevent unauthorized changes during operation.
Category: AC Motor Controls
Manufacturer: Allen Bradley
Manufacturer Synonyms: Rockwell Automation, allan bradly
Manufacturer Part Number: 22A-D8P7N104 SERIES A
Series: PowerFlex 4 AC Drive
Common Failures
Customers have reported issues related to the F005 alarm code, which indicates an "Overvoltage" condition. This typically suggests that the DC bus voltage exceeds its maximum permissible value.
Repair Approach
When addressing the F005 alarm code, our technicians conduct a series of diagnostic tests. Key actions include verifying voltage levels and checking for possible faulty components such as opto-couplers. Adjustments may also be made to operational parameters to facilitate further testing.
Testing & Quality
A Burn-In Test is performed utilizing a 2 HP 3-phase motor to evaluate proper functionality. In some instances, no faults are detected during the testing process, indicating the unit is operational.
Service and repair your broken Allen Bradley part
We can repair your Allen Bradley model 22A-D8P7N104 SERIES A in our facility. Let our skilled technicians get your Allen Bradley back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
