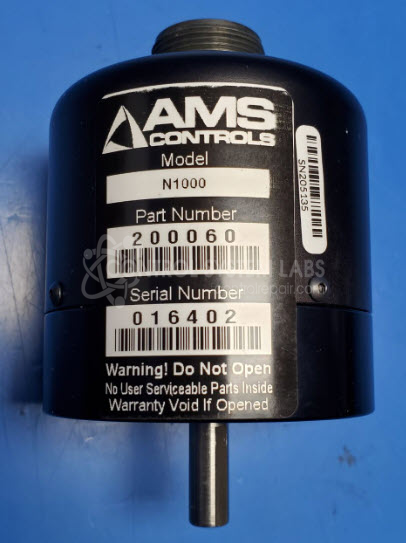

AMS Controls Inc. N1000 Encoder, 4000 PPR
Repair
Repair Price: $ 594.00
Purchase
CSL Part Number: 105569
Product Overview: The AMS Controls N1000 is an incremental rotary encoder available in multiple pulse-per-revolution (PPR) configurations, including 1000 PPR and 1024 PPR variants. It converts rotational motion into digital pulse signals used for position tracking and speed measurement. Commonly found in material handling and cutting applications such as chop saws and length-measuring systems, it provides quadrature output channels with 50% duty cycle. The encoder features a robust housing and shaft bearings designed for industrial environments.
Category: Encoders / Tachometers / Resolvers
Manufacturer: AMS Controls Inc.
Manufacturer Part Number: N1000
Also Known As(AKA): 200060
Common Failures
Several issues can arise with encoders, often related to mechanical wear or physical damage. Common symptoms include inaccurate readings, varying cut lengths, and communication issues with the controller. Physical damage, such as dents in the case, can affect performance. Bearings may also be a source of noise or operational concern.
Repair Approach
Our team performs diagnostic testing to identify issues such as internal connection problems or physical damage. When encoders have sustained physical damage, we evaluate the housing and internal components to determine serviceability. In some cases, units are found to function normally after evaluation and no repair work is required.
Testing & Quality
We perform testing to verify encoder functionality, including burn-in tests with and without load, and pulse verification. Performance tests involve running the motor through multiple rotations to verify consistent pulse readings. Encoders are checked for electrical and mechanical integrity, with outputs verified using test equipment. Units that pass testing are reviewed by qualified personnel to confirm proper operation.
Service and repair your broken AMS Controls Inc. part
We can repair your AMS Controls Inc. model N1000 in our facility. Let our skilled technicians get your AMS Controls Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
