Repair
Repair Price: $ 1,128.00
Purchase
CSL Part Number: 31183

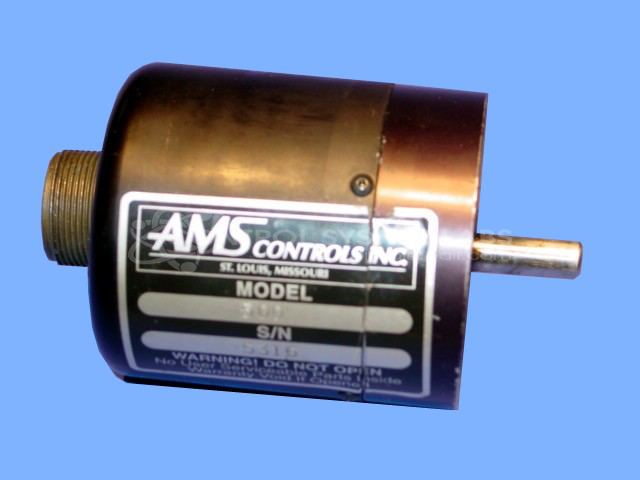

Product Overview: The AMS Controls N500 (also known as the 500 Series or 104397) is an industrial modified quad encoder used for motion feedback and position sensing in paper industry applications. It provides quadrature output signals for precise speed and direction monitoring. This encoder is typically mounted on motors, roll stands, or web handling equipment in paper mills and converting machinery. The unit features a robust shaft design suitable for harsh industrial environments and delivers reliable pulse-per-revolution (PPR) counts for process control systems.
Category: Encoders / Tachometers / Resolvers
Manufacturer: AMS Controls Inc.
Manufacturer Part Number: N500
Also Known As(AKA): 500, 104397
Common Failures
This unit was evaluated thoroughly during testing. No defects were found. The encoder operated without missing pulses or operational issues during the evaluation period.
Repair Approach
The unit underwent functional testing cycles. The shaft operation was confirmed to be smooth and free of physical damage such as bending.
Testing & Quality
Comprehensive tests were conducted, including extended functional testing cycles. These tests verified the encoder's accuracy and reliability. With over 50,000 cycle counts in different testing jigs, the product operated as designed with no fault detected.
Service and repair your broken AMS Controls Inc. part
We can repair your AMS Controls Inc. model N500 in our facility. Let our skilled technicians get your AMS Controls Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
