Repair
Repair Price: $ 492.00
Purchase
CSL Part Number: 65826

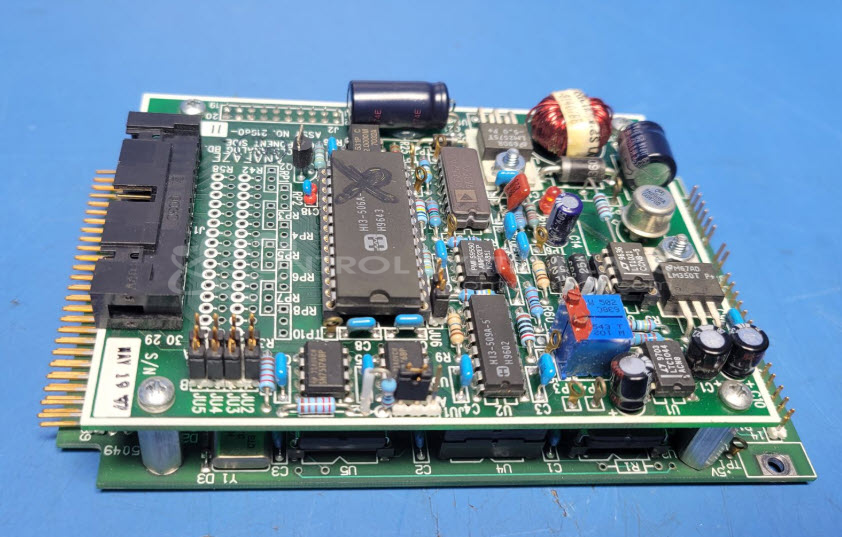

Product Overview: The Anafaze 16CLS is a 16-channel process controller designed for precise temperature monitoring and control in industrial heating applications. It accepts thermocouple inputs (typically Type J) and provides multi-zone temperature regulation. Commonly found in reflow ovens like the Heller 1500SX, it manages heating zones for soldering and other thermal processes. The unit features field-calibratable channels with ranges typically spanning 0-400°C, individual zone control outputs, and a modular cage design with integrated display and button interface for operator setup and monitoring.
Category: Temperature Control
Manufacturer: Anafaze
Manufacturer Synonyms: Watlow
Alternate Manufacturer Names: WATLOW ANAFAZE
Manufacturer Part Number: 16CLS

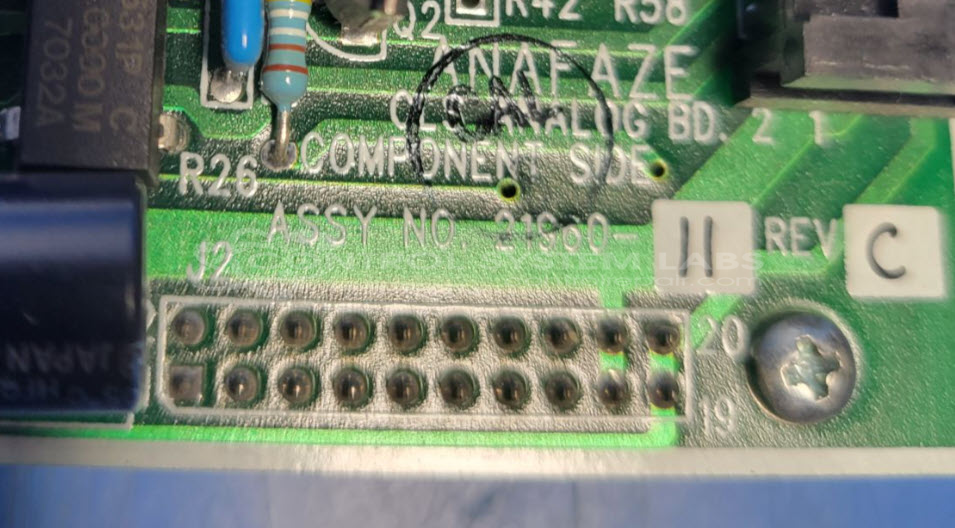

Also Known As(AKA): 21960-11
Other Synonyms: WATLOW ANAFAZE
Please leave the boards in the case (assembled) when sending in. Advise type of sensor used with the control.
Common Failures
Common issues with this product include failure in the controller for Zone 1, showing incorrect temperature readings, possibly due to defective capacitors. These components can cause voltage problems and calibration issues.
Repair Approach
The repair process typically involves replacing defective electrolytic capacitors and other vital components to restore normal functionality. A representative repair included replacing pertinent capacitors and a RAM chip, with recalibration of channels to address temperature and voltage readings.
Testing & Quality Assurance
Post-repair, the equipment undergoes calibration verification across channels to confirm precision. Additionally, inputs are tested to confirm that reported issues have been addressed. The testing process also includes a burn-in test without load to evaluate stability and performance of the repair.
Service and repair your broken Anafaze part
We can repair your Anafaze model 16CLS in our facility. Let our skilled technicians get your Anafaze back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
