Repair
Repair Price: $ 394.00
Purchase
CSL Part Number: 108684

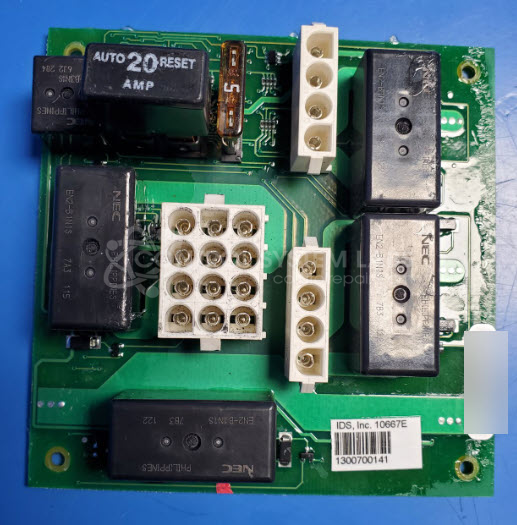

Product Overview: The Atwood 10667E is a slide out control board used in recreational vehicles to manage the extension and retraction of slide-out rooms. Manufactured by Atwood (also marketed under Lippert), this power control board operates motorized slide mechanisms through integrated relays that switch 12VDC power to the drive motors. The board includes a resettable circuit breaker for overcurrent protection and multiple relays configured in an H-bridge arrangement to control motor direction. It is commonly found in travel trailers, fifth wheels, and motorhomes equipped with electric or hydraulic slide-out systems.
Category: Power Controls
Manufacturer: Atwood
Alternate Manufacturer Names: Lippert
Manufacturer Part Number: 10667E
Also Known As(AKA): 10644-C
Other Synonyms: Lippert
Limited power up testing no system test.
Common Failures
Issues with the slide out control board often involve power not passing through the board due to defective components, such as motor relays. A typical symptom is the clicking sound from a relay without a corresponding voltage output, indicating faulty relay contacts. Additionally, loose connections in the circuit breaker can cause poor performance under high current draw.
Repair Approach
Repairs commonly include replacing defective relays, tightening the resettable fuse socket, and ensuring all connections on the circuit breaker are secure. We also confirm that all relays are functioning as intended by testing and replacing any components that produce noise or have poor connections.
Testing & Quality
Each repaired board undergoes testing to confirm proper operation. This includes testing all relay outputs, checking circuit breaker contacts, and performing burn-in tests. The successful completion of these tests confirms that the board operates correctly and can handle expected power loads.
Limited Repair
The Atwood part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Atwood part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
