Repair
Repair Price: $ 844.00
Purchase
CSL Part Number: 82623

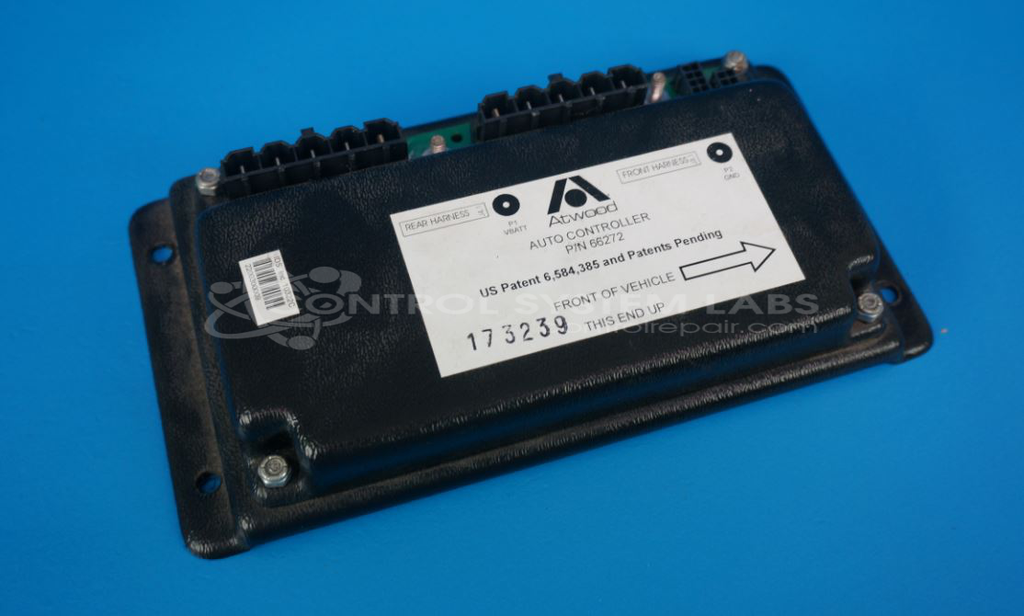

Product Overview: The Atwood 66272 Ford Auto Position Controller is a leveling system controller designed for fifth-wheel trailer applications. It manages automatic leveling legs (Leveleg system) via relay-driven motor control, communicating with a dedicated keypad interface through 4-pin and 8-pin connectors. The controller operates on 12VDC and uses H-bridge relays to control multiple leveling actuators independently. Common applications include recreational vehicles and trailers equipped with automatic hydraulic or electric leveling systems. The unit features current-sensing circuitry and is typically mounted in environments subject to moisture and vibration.
Category: Control Assembly
Manufacturer: Atwood
Manufacturer Part Number: 66272
Send your keypad AND controller (see diagram) and we will test them to isolate the problem to the keypad, controller, or wiring/jacks (minimum $75 checkout fee may apply). Excessive burn damage or corrosion will result in additional costs.
Common Failures
Some common issues identified in repair data include no power to the unit, corrosion on relay components, and connection issues with 4-pin and 8-pin connectors. Additionally, some units exhibited keypad lighting malfunctions and loose connector housings.
Repair Approach
Repairs may involve replacing defective 4-pin and 8-pin connectors, performing corrosion repair by cleaning and re-tinning traces, and conducting preventative maintenance on various board components. Mechanical adjustments such as reshaping or expanding cases for better access may also be completed. Conformal coating may be applied post-repair to protect the components from further environmental damage.
Testing & Quality
Units undergo burn-in testing with motors and comprehensive testing with customer keypads to verify functionality. Repairs are followed by testing to confirm operational functions and the absence of errors post-repair. Quality checks ensure that repaired units meet performance standards before return to service.
Service and repair your broken Atwood part
We can repair your Atwood model 66272 in our facility. Let our skilled technicians get your Atwood back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
