Repair
Repair Price: $ 304.00
Purchase
CSL Part Number: 83832

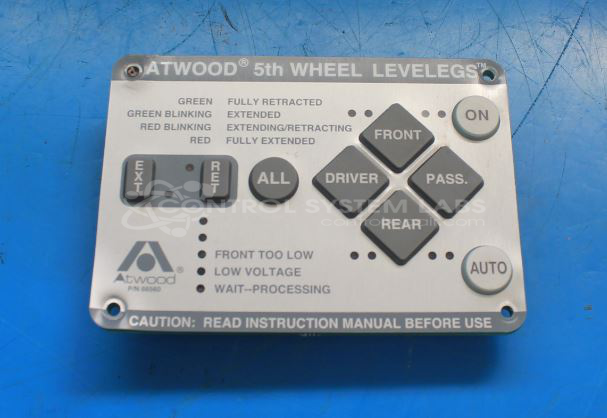

Product Overview: The Atwood 66560 is a membrane-style operator keypad used to control Atwood Levelegs automatic leveling systems in fifth-wheel recreational vehicles. It communicates with a separate control unit to operate hydraulic or electric leveling jacks, allowing users to extend or retract jacks individually, in pairs (front/rear), or automatically level the RV. Common failure modes include oxidized or worn button contacts, requiring replacement of the internal contact pads to restore proper button functionality. The keypad features LEDs for status indication and connects to the controller via a multi-conductor harness.
Category: Operator Interface
Manufacturer: Atwood
Manufacturer Part Number: 66560
Send your Keypad AND Controller (see diagram) and we will test them to isolate the problem to the keypad, controller, or wiring/jacks (minimum $75 checkout fee may apply). Excessive burn damage or corrosion will result in additional costs.
Common Failures
This keypad may experience issues with button functionality. Common causes include oxidation or corrosion of button contacts, physical damage to the button membrane, and LED malfunctions. In some cases, issues may be related to the associated control unit rather than the keypad itself.
Repair Approach
Our standard repair process addresses oxidized or damaged button contacts through reconditioning or replacement. This may include applying a new keypad overlay, adhesive reapplication, button replacement, mechanical reassembly, and sealing as needed to restore functionality. If control unit issues are suspected, we recommend sending both components for combined evaluation and testing.
Testing & Quality
All repaired keypads undergo testing to verify functionality. This includes button operation tests, LED tests, and communication checks with control units where applicable. Units are tested to confirm they meet operational standards before return.
Service and repair your broken Atwood part
We can repair your Atwood model 66560 in our facility. Let our skilled technicians get your Atwood back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
