Repair
Repair Price: $ 564.00
Purchase
CSL Part Number: 67505

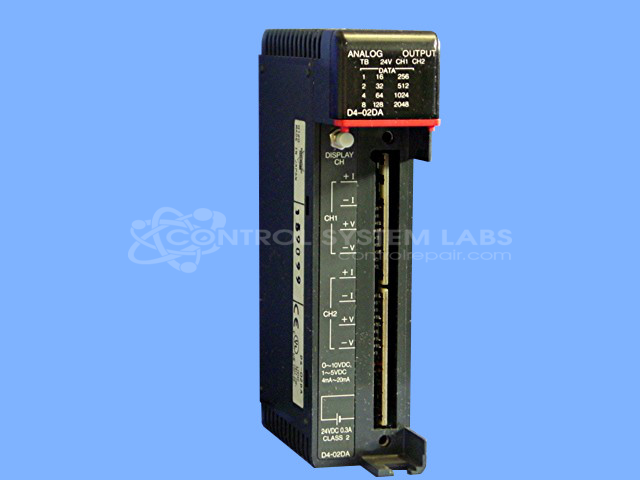

Product Overview: The D4-02DA is a 2-channel analog output module for the DL-405 series programmable logic controller system. It provides voltage or current output signals to control variable speed drives, valves, actuators, and other analog field devices in industrial automation applications. The module mounts directly into a DL-405 PLC base rack and communicates via the backplane. Automation Direct offers this as a current production item, while Siemens TI previously manufactured an equivalent U-01DA module that is directly interchangeable with identical mounting, wiring, and configuration.
Category: Output Card & Modules
Manufacturer: Automation Direct
Manufacturer Synonyms: AutomationDirect
Manufacturer Part Number: D4-02DA
Series: Series 405 PLC
Brand: Siemens, TI
Common Failures
During evaluation, we have observed issues with inconsistent outputs from this product type. This has often been attributed to capacitor-related concerns. Symptoms may include output voltage that remains fixed and does not adjust as expected.
Repair Approach
Repairs may involve the replacement of one or more electrolytic capacitors. In cases where capacitors are identified as faulty during evaluation, replacement can address output inconsistencies. Each unit is assessed individually to determine the appropriate repair steps.
Testing & Quality
After repairs, products undergo testing with a load to verify stability under operating conditions. This includes using a fixed resistor across the voltage terminals. Products are evaluated to confirm they meet performance expectations before being returned.
Service and repair your broken Automation Direct part
We can repair your Automation Direct model D4-02DA in our facility. Let our skilled technicians get your Automation Direct back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
