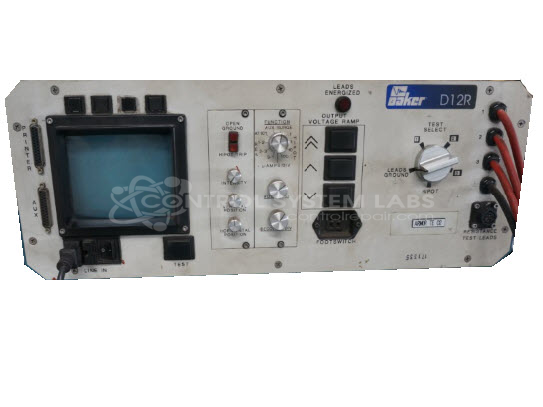

Baker Instrument Co. D12R Surge Tester

Repair

Call for price

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/101605/image_1920?unique=b0af1a5
  • Condition

Purchase Price: $ 0.00 $ 0.00 0.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 81258
Product Overview: A portable electrical test instrument used to evaluate the insulation integrity of motor and generator windings, transformers, and coils. It applies high-voltage surge pulses to detect turn-to-turn shorts and insulation weaknesses, and includes integrated HIPOT testing capability with output up to roughly 12KV.
Category: Test Equipment
Manufacturer: Baker Instrument Co.
Manufacturer Synonyms: SKF
Manufacturer Part Number: D12R

Common Failures

Units submitted for repair have exhibited failures such as inability to generate voltage during surge testing, voltage reaching 12KV unexpectedly during testing, and open resistance resulting in maximum voltage on HI Pot testing.

Repair Approach

Repairs for surge testing issues have included capacitor replacement, cleaning of selector switch contacts, resoldering output connections, and testing relay contacts. For voltage irregularities, control boards have been inspected and socket connections reseated as needed.

Testing & Quality

Following repair, units undergo testing to verify proper operation and stability.

Unresolved Issues

When reported issues cannot be verified or replicated during evaluation, units are returned without repair.

Limited Repair

The Baker Instrument Co. part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:

  • Availability of parts
  • Less than 100% test ability due to required support equipment

To have us attempt a repair on your Baker Instrument Co. part follow these steps:

Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 - Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 - Mail the box to the address on the RMA.

After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
