CSL Part Number: 39875

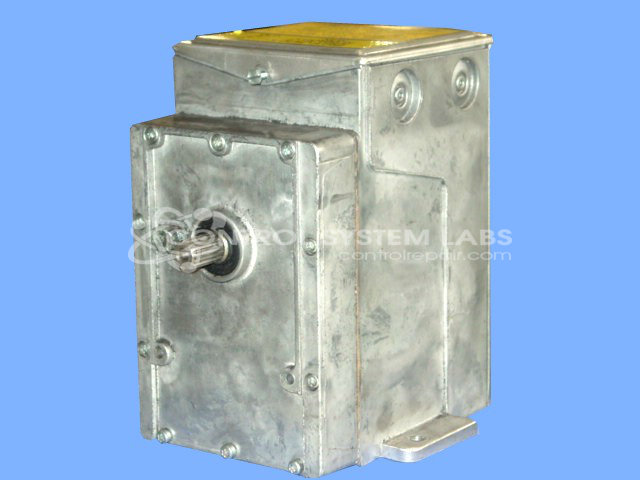

Product Overview: The MP-453-133-1-1 is a non-standard TAC actuator from Barber Colman's MP Series, designed for HVAC damper and valve control in building automation systems. It features a 90-degree rotational travel with an integrated 1000-ohm slidewire for position feedback and adjustable limit switches with cams for endpoint configuration. This electromechanical actuator provides proportional positioning control in response to control signals from building management systems, commonly used in air handling units and process control applications.
Category: Actuators
Manufacturer: Barber-Colman
Manufacturer Synonyms: Barber Coleman, Barbercolman, Invensys
Alternate Manufacturer Names: LEEDS & NORTHRUP, Invensys Building Systems
Manufacturer Part Number: MP-453-133-1-1
Series: MP Series Actuator
Brand: Barber-Colman
Other Synonyms: LEEDS & NORTHRUP, Invensys Building Systems
Common Failures
Units received for evaluation have shown issues with the slidewire actuator where the wiper becomes unresponsive after reaching a specific resistance level. Additionally, dead spots along the slidewire's travel path and misalignment of cams have been observed, leading to improper engagement with limit switches. These issues can affect the actuator's performance and reliability.
Repair Approach
Repairs typically involve addressing defective slidewire components to restore normal functionality. For cases with misaligned cams, adjustments are made to ensure proper interaction with the limit switches. If the actuator was initially set up incorrectly, wiring is corrected according to standard manufacturer guidelines.
Testing & Quality
Following repair, each unit is subjected to testing. Actuators are run continuously in both clockwise and counterclockwise directions to evaluate performance across full rotational capacity. This process verifies that repairs have been completed and the devices are performing as expected.
