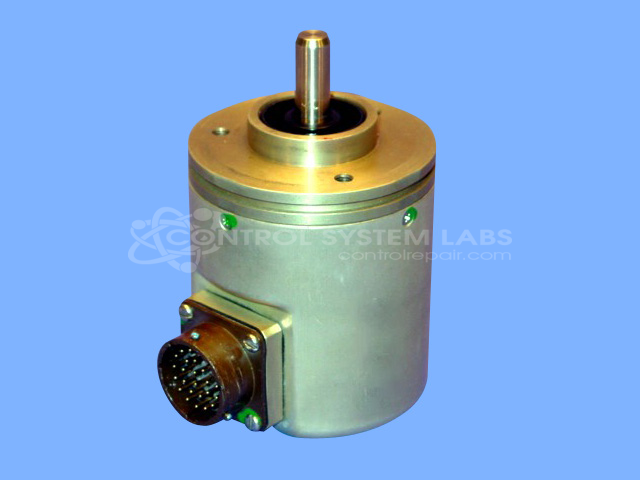

BEI Electronics 76LDGC-08-5-S-7 Single Shaft Encoder
Repair
Repair Price: $ 780.00
Purchase
CSL Part Number: 16786
Product Overview: A single shaft optical rotary encoder using a glass disc to generate incremental pulse outputs with 50% duty cycle for position, speed, and motion feedback. Commonly applied in paper mills and industrial machinery. Features quadrature output channels and shaft-driven measurement wheel configuration.
Category: Encoders / Tachometers / Resolvers
Manufacturer: BEI Electronics
Manufacturer Part Number: 76LDGC-08-5-S-7
Common Failures
Frequent issues include bearing failures, worn or scratched glass, excessive physical damage, and corroded components. These problems can lead to units being classified as Beyond Economic Repair (BER), particularly when there is evidence of excessive force or physical damage.
Repair Approach
For issues that are not BER, standard repair techniques include cleaning, re-soldering, and testing the unit. Common successful repairs involve addressing corrosion on traces, reattaching or repairing wires, and replacing damaged resistors. After these actions, devices typically function correctly with all outputs verified.
Testing & Quality
All repairable units undergo thorough testing after repairs, including checks for proper counting and signal integrity, ensuring outputs and pulse rates meet design specifications. Devices are subject to burn-in tests and functional tests to confirm they operate as intended.
Service and repair your broken BEI Electronics part
We can repair your BEI Electronics model 76LDGC-08-5-S-7 in our facility. Let our skilled technicians get your BEI Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
