BEI Electronics H25W-F67-SS-10GCC-28V/V-CCW-SM16/26-S H25 Gray Code Absolute Encoder
Repair
Repair Price: $ 740.00
Purchase
CSL Part Number: 69880

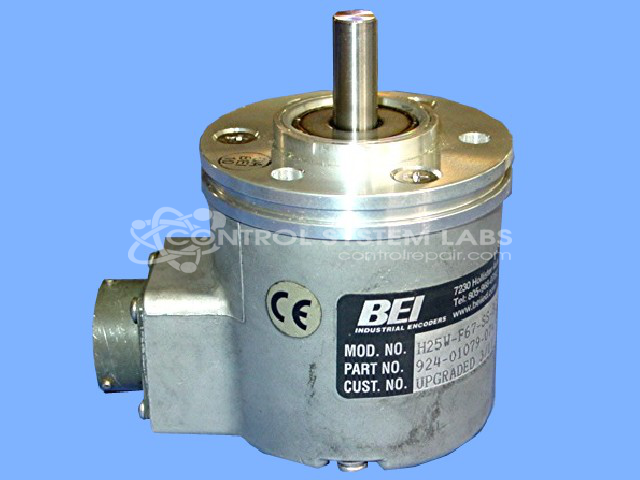

Product Overview: A heavy-duty rotary absolute encoder that reports shaft position as parallel Gray code output, providing non-volatile position tracking that retains its reading without power. Built on a glass optical disc with a size-25 housing, it serves motion control and positioning applications across industrial machinery. Operates on 28V with complementary outputs.
Category: Encoders / Tachometers / Resolvers
Manufacturer: BEI Electronics
Manufacturer Part Number: H25W-F67-SS-10GCC-28V/V-CCW-SM16/26-S
Series: H25 Encoder
Also Known As(AKA): BEI
Common Failures
Frequent issues include damaged glass components, units not reading or counting correctly, and physical damage such as damaged connectors. There are also instances where no faults could be detected during evaluation despite reported problems.
Repair Approach
Repairs often involve cleaning, testing, and component-level work such as resoldering. Specific issues such as damaged connectors or misaligned components, like the glass wheel, are addressed through cleaning, realignment, or replacement when necessary. For units that cannot be repaired due to severe damage, they are returned unrepaired or recycled here at no charge per customer request.
Testing & Quality
Testing procedures include verifying the proper operation of all pulses at a 50% duty cycle and ensuring accurate counting. Repairs are validated through burn-in tests of varying durations and by checking signal integrity using oscilloscopes. Where applicable, repaired units are confirmed to function as designed.
Service and repair your broken BEI Electronics part
We can repair your BEI Electronics model H25W-F67-SS-10GCC-28V/V-CCW-SM16/26-S in our facility. Let our skilled technicians get your BEI Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
