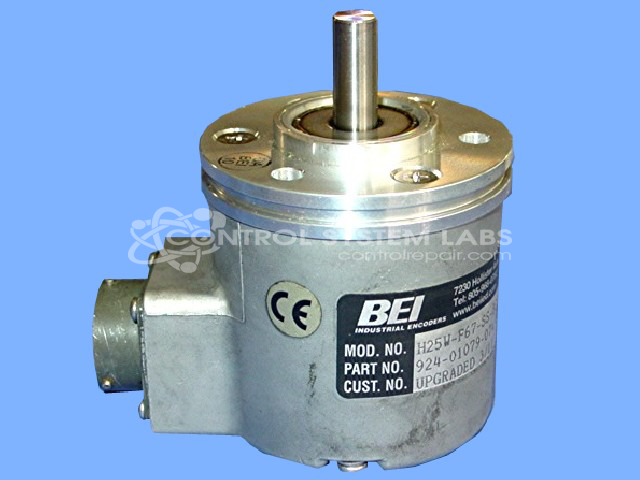

BEI Electronics H25W-F67-SS-10GCC-7272-CCW-SM16/26-S H25 Gray Code Absolute Encoder

Repair

Repair Price: $ 740.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/105229/image_1920?unique=0c643e8
  • Condition

Purchase Price: $ 0.00 $ 0.00 740.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 69879
Product Overview: A rugged industrial rotary absolute encoder that reports shaft position as a 10-bit Gray code output, providing precise, non-incremental position feedback. Built around an optical glass code wheel with a servo-mount housing and CCW counting, it is used for motion control and position sensing on motors and automated machinery.
Category: Encoders / Tachometers / Resolvers
Manufacturer: BEI Electronics
Manufacturer Part Number: H25W-F67-SS-10GCC-7272-CCW-SM16/26-S
Series: H25 Encoder
Also Known As(AKA): BEI

Common Failures

This product may experience dirt accumulation on the control and glass wheel, which can lead to erroneous readings or control problems. In some cases, missing counts or rough edges in the output have been observed.

Repair Approach

Repairs typically involve cleaning the control or glass wheel to remove dirt and contaminants. The process may also include realigning components and adjusting settings to maintain proper duty cycle for accurate pulse counting. Additional repairs may involve addressing wiring issues and cleaning internal components.

Testing & Quality Assurance

Post-repair testing includes verifying the functionality of all pulses and ensuring the counts are accurate. Repairs undergo burn-in testing to confirm reliability over prolonged periods. Diagnostic tools such as oscilloscopes are used to verify signal accuracy across various frequencies.

Service and repair your broken BEI Electronics part


We can repair your BEI Electronics model H25W-F67-SS-10GCC-7272-CCW-SM16/26-S in our facility. Let our skilled technicians get your BEI Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
