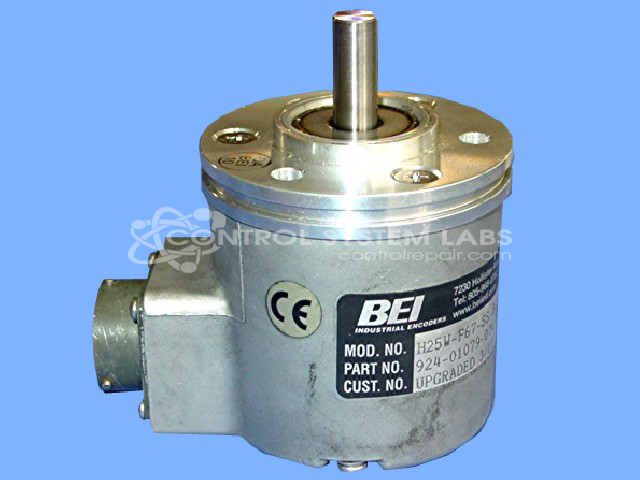

BEI Electronics H25W-F67-SS-8GCC-28VV-CCW-SM16 H25 Gray Code Absolute Encoder

Repair

Repair Price: $ 740.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/84691/image_1920?unique=2ed5daf
  • Condition

Purchase Price: $ 0.00 $ 0.00 740.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 74354
Product Overview: A heavy-duty rotary absolute encoder that outputs shaft position as an 8-bit Gray code, providing unique position data at power-up without homing. Operating on 28V with CCW counting, it suits industrial motion control, positioning, and process equipment requiring reliable absolute feedback.
Category: Encoders / Tachometers / Resolvers
Manufacturer: BEI Electronics
Manufacturer Part Number: H25W-F67-SS-8GCC-28VV-CCW-SM16
Series: H25 Encoder
Also Known As(AKA): BEI

Common Failures

Customers report issues primarily related to the control function, with symptoms such as the device "will not read." These problems typically do not present a clear cause upon initial inspection.

Repair Approach

The typical repair involves cleaning the control elements and resoldering where necessary. All components are then thoroughly tested to ensure proper operation. Our team has successfully addressed these issues in the past and worked to restore device functionality.

Testing & Quality

Post-repair, the devices undergo extensive testing to verify proper function, including ensuring all pulses have a 50% duty cycle. A burn-in test, lasting an hour, is also performed to evaluate stability following the repair.

Service and repair your broken BEI Electronics part


We can repair your BEI Electronics model H25W-F67-SS-8GCC-28VV-CCW-SM16 in our facility. Let our skilled technicians get your BEI Electronics back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
