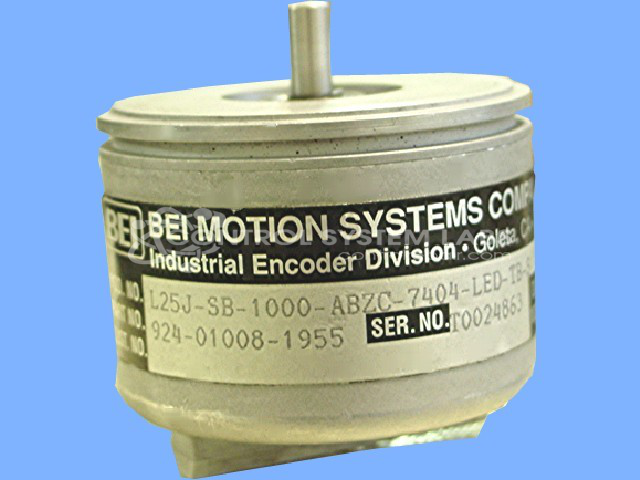

BEI Electronics L25J-SB-1000-ABZC-7404-LED L25 Incremental Optical Encoder
Repair
Repair Price: $ 540.00
Purchase
CSL Part Number: 65057
Product Overview: An incremental optical encoder that converts rotary shaft motion into digital pulses for position, speed, and direction feedback. Features 1000 pulses per revolution with A, B, Z, and complementary channels, 7404 line driver output, and LED light source. Used in motor control and motion feedback applications.
Category: Encoders / Tachometers / Resolvers
Manufacturer: BEI Electronics
Manufacturer Part Number: L25J-SB-1000-ABZC-7404-LED
Also Known As(AKA): 924-01008 SERIES
Common Failures
One of the frequent issues identified with this product is the misalignment of control pulses. This can lead to inconsistencies in operational performance.
Repair Approach
Our repair approach involves cleaning the components and making necessary adjustments to ensure a consistent 50% duty cycle for the pulses. After these adjustments, the product is tested to confirm that it functions as intended.
Service and repair your broken BEI Electronics part
We can repair your BEI Electronics model L25J-SB-1000-ABZC-7404-LED in our facility. Let our skilled technicians get your BEI Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
