CSL Part Number: 26844

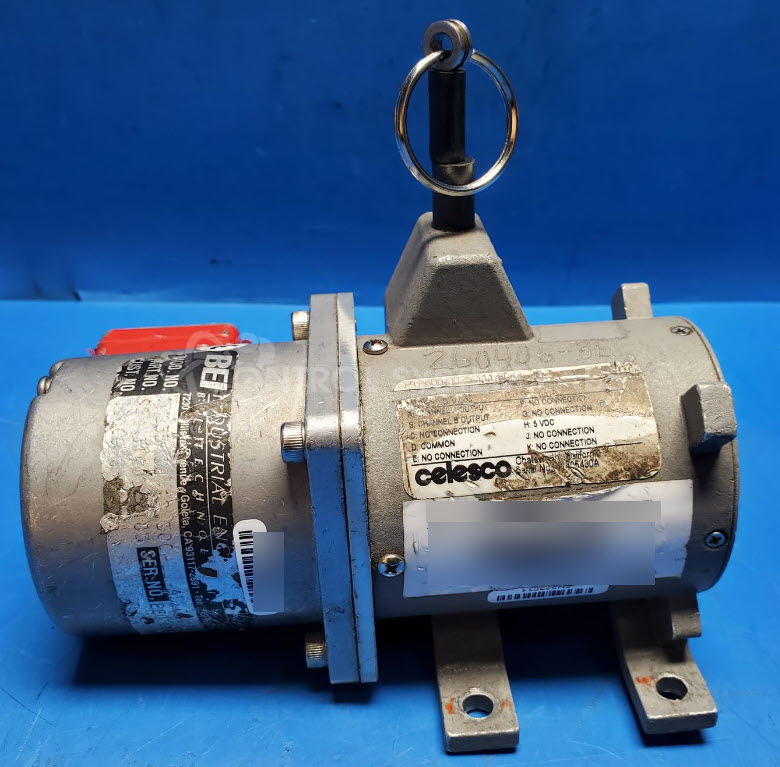

Product Overview: The H25 Optical Encoder is a high-resolution rotary encoder manufactured by BEI Electronics. It provides 12,500 pulses per revolution and uses optical sensing technology to convert rotational motion into electrical signals for position and speed feedback. Commonly found in servo motor systems, packaging machinery, printing presses, and precision motion control applications, it outputs quadrature signals with 90-degree phase shift for directional sensing. The shaft-style design allows direct mounting to motors or driven equipment.
Category: Encoders / Tachometers / Resolvers
Manufacturer: BEI Electronics
Manufacturer Part Number: XH25D-SS-12500-T5-(###)-
Series: H25 Encoder
Common Failures
Units may be found out of tolerance, often due to loose internal wiring or heat shrink material causing interference.
Repair Approach
Repairs typically involve cleaning and securing internal components to restore proper unit functionality.
Testing & Quality
Once repairs are completed, calibration is verified to ensure operation is within specifications. Final testing is conducted to confirm the unit's performance meets quality standards.
Service and repair your broken BEI Electronics part
We can repair your BEI Electronics model XH25D-SS-12500-T5-(###)- in our facility. Let our skilled technicians get your BEI Electronics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
