Repair
Repair Price: $ 604.00
Purchase
CSL Part Number: 84657

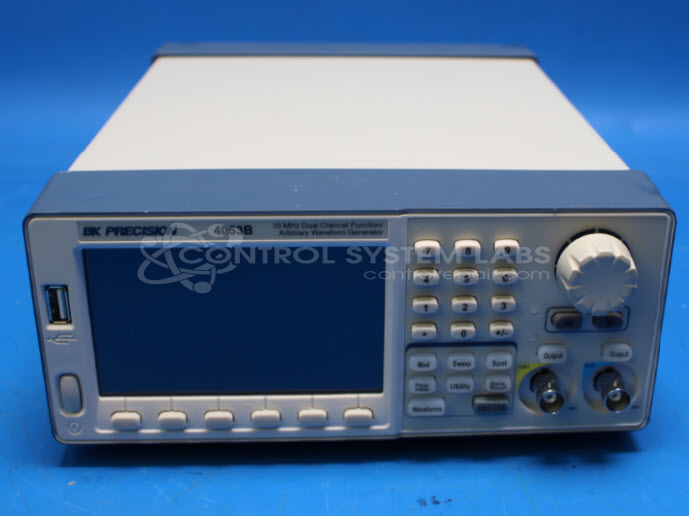

Product Overview: The BK Precision 4053B is a dual-channel arbitrary waveform function generator with 10 MHz bandwidth. It generates precision waveforms including sine, square, triangle, pulse, and arbitrary patterns for testing and troubleshooting electronic circuits. Commonly used in electronics labs, R&D facilities, and production environments for signal generation, component testing, and circuit analysis. Features dual independent outputs, adjustable frequency and amplitude controls via front panel rotary encoder, and USB connectivity for remote operation and waveform storage.
Category: Test Equipment
Manufacturer: BK Precision
Manufacturer Synonyms: B&K Precision, B+K Precision
Manufacturer Part Number: 4053B
Also Known As(AKA): Siglent SDG2000X
Common Failures
The B&K 4053B Waveform Generator may experience issues with its rotary encoder and knob assembly. Symptoms can include difficulty turning the adjustment knob, the knob becoming stuck, or the dial not functioning as a button. Additionally, the keypad membrane and buttons may become damaged or go missing over time. In some instances, fans within the unit may become noisy or fail.
Repair Approach
Once the unit is received and reviewed, we can provide a quotation before any repair work begins. Repairs typically involve replacing defective components such as the rotary encoder and knob. When necessary, the keypad membrane and fan are also replaced. Preventative maintenance may be performed during the repair process. Mechanical disassembly and reassembly are standard procedures. After repairs, units are cleaned, and ribbon cables are reseated if needed.
Testing & Quality
Repaired units undergo diagnostic testing to verify functionality. Tests include checking outputs with an oscilloscope and verifying that buttons, including the adjustment knob, work correctly. Burn-in tests are conducted to verify stability over time. Repairs are reviewed by quality assurance personnel before the unit is returned.
Service and repair your broken BK Precision part
We can repair your BK Precision model 4053B in our facility. Let our skilled technicians get your BK Precision back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
