Repair
Repair Price: $ 446.00
Purchase
CSL Part Number: 18540

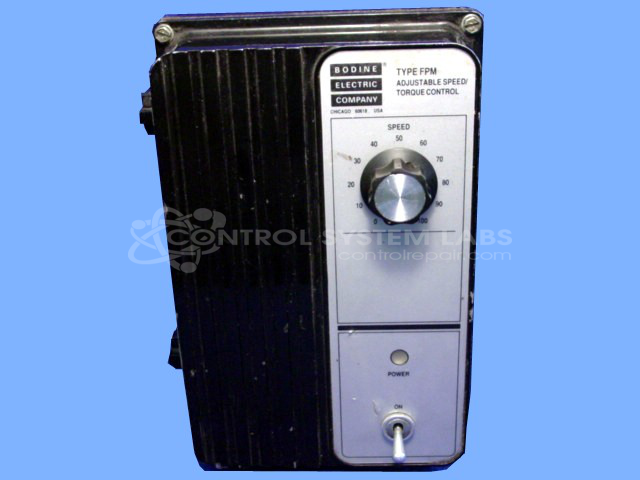

Product Overview: The Type FPM DC Motor Control is a fractional horsepower drive designed to control permanent magnet DC motors from 1/6 to 1/3 HP. It operates on 115VAC single-phase input and delivers up to 9A output. Part of Bodine Electric's 800 Series, this control provides speed regulation and motor starting/stopping functions for conveyors, packaging equipment, and other industrial machinery requiring variable-speed DC motor operation.
Category: DC Motor Controls
Manufacturer: Bodine Electric
Alternate Manufacturer Names: FPM & FBR
Manufacturer Part Number: 855
Series: TYPE FPM DC Drive
Other Synonyms: FPM & FBR
Common Failures
One of the common failures observed in this product is a defective electrolytic capacitor on the relay board, which can lead to functionality issues. Additionally, missing motor controller wires can potentially cause performance problems if not addressed.
Repair Approach
The repair approach involves diagnosing and replacing defective components, such as capacitors. Repairs may also include installing necessary wiring, such as adding a motor cable to ensure compatibility. Motor cables should be connected before powering up to prevent damage.
Testing & Quality
After repairs, testing is conducted to verify product functionality. This may include a burn-in test with the motor to confirm operational effectiveness. Final inspections are carried out to verify all corrections and ensure conformance to quality standards.
Service and repair your broken Bodine Electric part
We can repair your Bodine Electric model 855 in our facility. Let our skilled technicians get your Bodine Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
