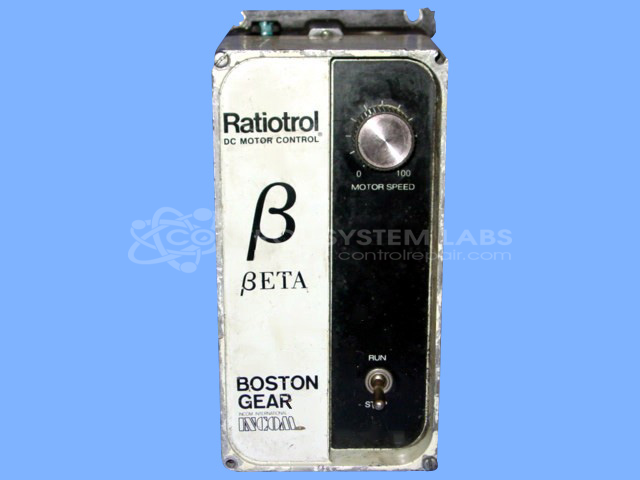

Boston Gear RB1S 1/12- 1 HP DC Drive

Repair

Repair Price: $ 444.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/30360/image_1920?unique=de345d8
  • Condition

Purchase Price: $ 0.00 $ 0.00 444.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 10959
Category: DC Motor Controls
Manufacturer: Boston Gear
Manufacturer Synonyms: Altra Industrial Motion
Manufacturer Part Number: RB1S
Series: Ratiotrol Beta RB Series

Common Failures

Units of this type may exhibit failure to start even after fuse replacement. In some cases, the control circuit is the root cause rather than the motor itself. Speed adjustment may become ineffective if voltage output remains constant when the unit is turned on.

Repair Approach

This unit was evaluated and two integrated circuits were identified as faulty and replaced. IC sockets were installed during the repair process. The switch was rewired to enable reverse motor operation. Other components including capacitors, SCRs, and diodes were tested and found to be serviceable.

Testing & Quality

Following repair, the unit underwent a 4-hour burn-in test on a 1/2 HP 90VDC motor. The unit performed as expected during testing.

Service and repair your broken Boston Gear part


We can repair your Boston Gear model RB1S in our facility. Let our skilled technicians get your Boston Gear back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
