CSL Part Number: 109498

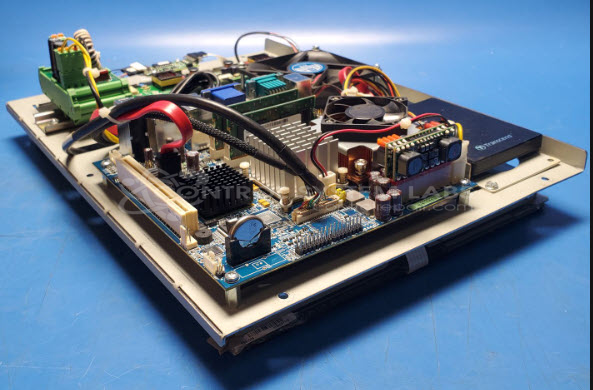

Product Overview: The 846547 Operator Interface Assembly is a human-machine interface (HMI) control panel used in Cincinnati Inc. hydraulic press brakes, particularly the Form Master II series including 90FMX8 and 135 FM II models. This assembly integrates a touchscreen display, pushbutton controls, embedded computer components, and ATX power supply in a compact operator panel that provides machine control, programming, and monitoring functions for precision metal bending operations.
Category: Operator Interface
Manufacturer: Cincinnati Inc.
Manufacturer Part Number: 846547
Series: Form Master II
Common Failures
The Cincinnati Inc Operator Interface may experience issues where the screen and controls do not power on despite receiving proper voltage. Shipping damage may also occur, often affecting the touchscreen, cables, and standoffs. Additionally, broken or missing buttons have been identified as potential problems during inspection.
Repair Approach
Repair typically involves verifying the ATX power supply functionality using a compatible power supply tester. Replacement of the touchscreen, SATA cable, and standoffs may be required to address damage. In some cases, replacing broken or missing buttons may be necessary to restore functionality.
Service and repair your broken Cincinnati Inc. part
We can repair your Cincinnati Inc. model 846547 in our facility. Let our skilled technicians get your Cincinnati Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
