Repair
Repair Price: $ 2,196.00
Purchase
CSL Part Number: 48324

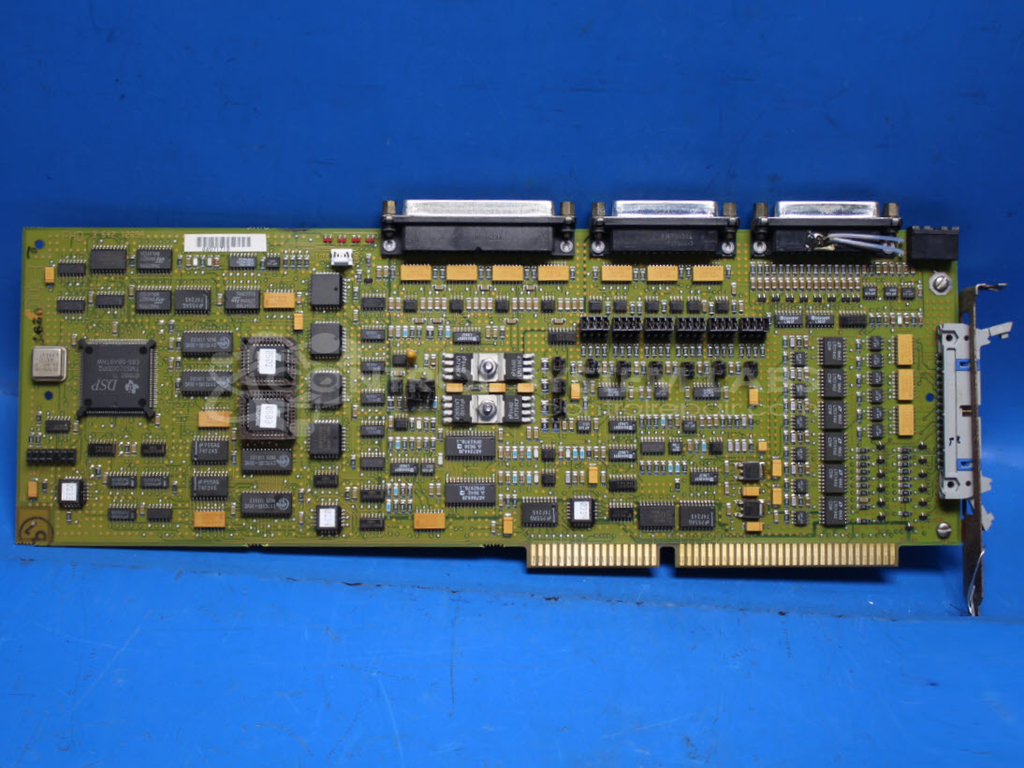

Product Overview: The FGC Hydraulic Driver FHD Board (part number 3-542-1269A) is a control card used in Cincinnati Milacron CAMAC 486 PLUS injection molding machines. It manages hydraulic pressure control and monitoring functions through multiple analog inputs and outputs, LVDT (linear variable differential transformer) inputs for position sensing, thermocouple inputs for temperature monitoring, and PWM outputs to CAT/CAF interface boards. The board processes pressure settings, sensor feedback, and communicates with other system components to regulate hydraulic system operation in plastic injection molding equipment.
Category: Control Board
Manufacturer: Cincinnati Milacron
Manufacturer Part Number: 3-542-1269A
Series: CAMAC 486 PLUS
Common Failures
Several board failures have been reported, typically involving defective components or configuration issues. Key issues have included voltage regulators, operational amplifiers, A/D converters, and DACs, which may result in temperature and pressure control issues or analog input/output errors. Other reported symptoms have involved error codes and physical damage such as discoloration or damaged traces on the circuit boards.
Repair Approach
Our approach involves diagnosing and replacing faulty components such as voltage regulators, capacitors, and A/D and DAC converters as needed. In certain cases, repairs may include correcting solder joints, securing sensors, or addressing configuration settings. For some conditions, adjustments to settings and testing procedures for analog I/O may be necessary. We provide a quotation before any repair work begins.
Testing & Quality
Following repair, boards undergo diagnostic and functional testing, including burn-in tests with load conditions and comprehensive level testing. Repairs that pass testing are confirmed to meet our quality standards. In some cases, reported issues may not be replicable during evaluation, resulting in a No Fault Detected status upon rigorous testing procedures.
Service and repair your broken Cincinnati Milacron part
We can repair your Cincinnati Milacron model 3-542-1269A in our facility. Let our skilled technicians get your Cincinnati Milacron back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
