Cleveland Machine Controls M655R 650 series 5 HP DC Drive - Reversing

Repair

Repair Price: $ 664.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/70395/image_1920?unique=7e3fbca
  • Condition

Purchase Price: $ 0.00 $ 0.00 664.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 86780

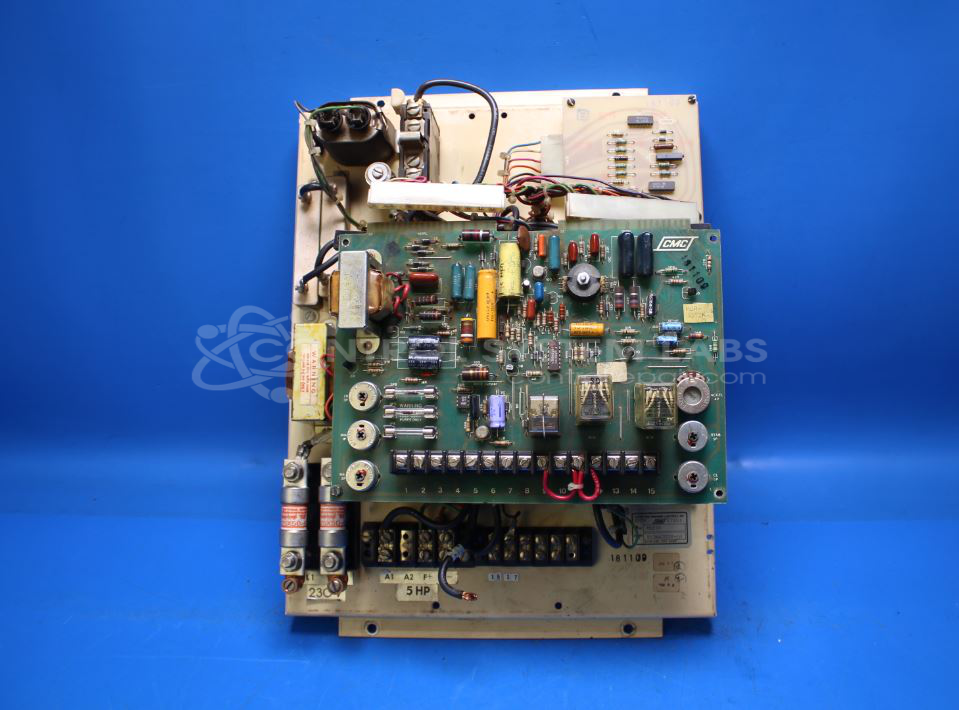

Product Overview: A 5 HP reversing DC motor drive that controls the speed, direction, and torque of DC motors by regulating armature and field voltage. Supports 180 VDC motors with tachometer feedback (7V/1000 RPM). Used in industrial machinery such as paper handling and material processing equipment.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: M655R
Series: 650 Series DC Drive

Common Failures

This product has experienced issues with the circuit board affecting motor function, including field winding damage and blown fuses. These failures have been traced to soldering defects, micro cracks in solder pads, and defects in circuit traces.

Repair Approach

Repairs have involved correcting soldering and connections, repairing micro cracks on solder pads, and fixing circuit traces. Additionally, key components such as capacitors and relays have been replaced or secured as needed. Following repairs, systems are verified for correct operation.

Testing & Quality

Post-repair testing includes running the system with a 180 VDC motor and verifying it under various load conditions to ensure reliable functionality. We recommend that users verify correct wiring of armature and field to maintain optimal operation.

Service and repair your broken Cleveland Machine Controls part


We can repair your Cleveland Machine Controls model M655R in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
