Repair
Repair Price: $ 412.00
Purchase
CSL Part Number: 18145

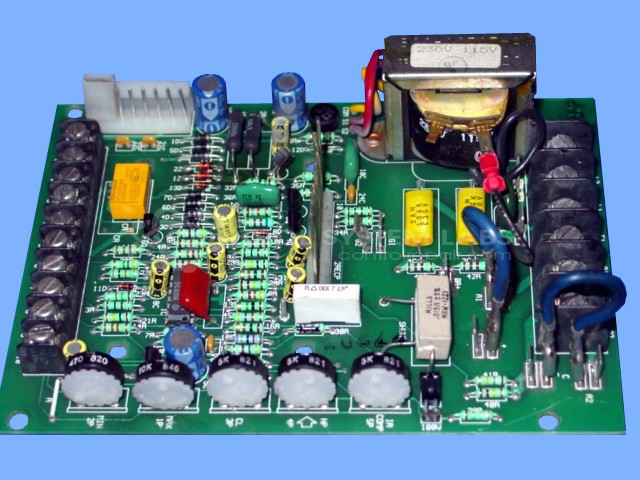

Product Overview: The Pacemaster 1 Control Board (MO-04039-0) is a DC motor control circuit board manufactured by Cleveland Machine Controls. It regulates armature and field outputs for DC motor speed and torque control, commonly used in paper processing and converting machinery. The board interfaces with power modules and accepts tachometer feedback for closed-loop speed regulation. Key components include signal relays for output switching and multiple electrolytic capacitors for filtering and timing functions. It is typically mounted in a frame with an associated power module for complete drive operation.
Category: Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: MO-04039-0
Series: Pacemaster 1
Common Failures
Units may exhibit issues such as aging capacitors, defective relays, damaged traces, or burn marks on the circuit boards. These conditions can result in symptoms such as lack of armature function despite fields appearing operational.
Repair Approach
The repair process may involve replacing defective components such as relays and capacitors and conducting circuit board trace repairs. For units with burn marks, the board is cleaned and traces are repaired as needed. Preventative replacements of aging capacitors may be implemented to restore functionality.
Testing & Quality
After repairs, products undergo testing to verify functionality. Please note that not all features or feedback circuits may be tested during our standard evaluation process. Each item is tested to ensure proper operation before being returned to the customer.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model MO-04039-0 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
