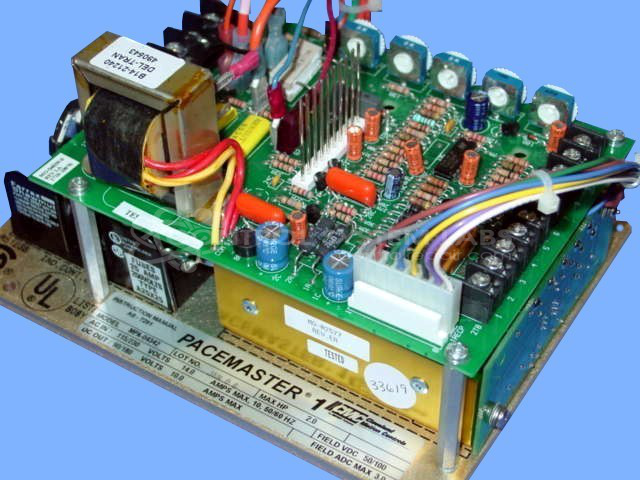

Cleveland Machine Controls MPA-04342 M0-02576 Pacemaster 1 DC Drive 0.25 to 2HP/Fuses/Reversing Contactor
Repair
Repair Price: $ 594.00
Purchase
CSL Part Number: 40265
Product Overview: The Pacemaster 1 DC Drive (model MPA-04342) from Cleveland Machine Controls is a 0.25 to 2 horsepower DC motor controller designed for industrial applications. It features integrated fuses and a reversing contactor for bidirectional motor control. The drive accepts external control inputs including start/stop switches, forward/reverse selection, and speed control via potentiometer. It utilizes SCR-based power control with relay logic for motor starting and directional control, commonly found in paper processing and material handling equipment requiring variable speed DC motor operation.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: MPA-04342 M0-02576
Series: Pacemaster 1
Common Failures
Units submitted for repair have exhibited various symptoms including surging, inability to adjust settings, loss of drive function, and damaged wiring. Evaluation has identified causes such as failed components, improper previous repair attempts, defective relays, burnt or missing wiring, and incorrect component values.
Repair Approach
The repair process typically involves replacing defective components, such as electrolytic capacitors, relays, and wiring. When evidence of previous incorrect repairs is found, the unit is carefully evaluated and corrected, which may include replacing incorrectly valued resistors and improperly installed components. Preventative measures often include replacing aging capacitors and ensuring mechanical integrity by re-securing components such as SCRs with proper heatsink compound.
Testing & Quality
Once repairs are completed, each unit undergoes functional testing, including burn-in tests with coupled motors to simulate operational conditions. Forward/reverse functions, motor operation, start/stop switches, and speed control are verified to confirm the unit operates as expected. All repairs are reviewed by quality control to ensure compliance with CSL performance standards.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model MPA-04342 M0-02576 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
