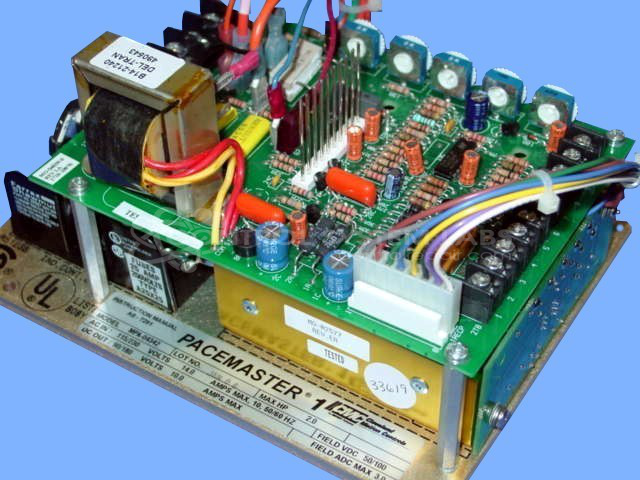

Cleveland Machine Controls MPA-04342 M0-02577 Pacemaster 1 DC Drive 0.25 to 2HP/Fuses/Reversing/DB/AP
Repair
Repair Price: $ 594.00
Purchase
CSL Part Number: 40264
Product Overview: The Pacemaster 1 MPA-04342 is a reversing DC motor drive rated for 0.25 to 2 horsepower applications. It includes integral fusing, dynamic braking, and armature protection features. This drive is commonly used in industrial paper machinery and other adjustable-speed DC motor applications requiring bidirectional control. It provides speed regulation through adjustable potentiometer references and tachometer feedback capability for closed-loop operation.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: MPA-04342 M0-02577
Series: Pacemaster 1
Common Failures
Over the years, common issues with this product include loss of motor output and defective components such as transformers and bipolar transistors. A history of malfunctioning components like capacitors and relay contacts has also been observed.
Repair Approach
Repairs typically involve diagnostic testing to identify faulty components, such as using Huntron and DMM testing for transformers. Replacements or modifications may include resoldering connections, fitting new transformers, and replacing damaged capacitors and relays. Adjustments to wiring and structural components are occasionally required to accommodate new parts.
Testing & Quality
Post-repair, products undergo extensive testing to ensure functionality and reliability. This includes burn-in tests with motors and rigorous diagnostic checks. All repaired units are thoroughly tested to meet quality standards before being cleared for return to the customer.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model MPA-04342 M0-02577 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
