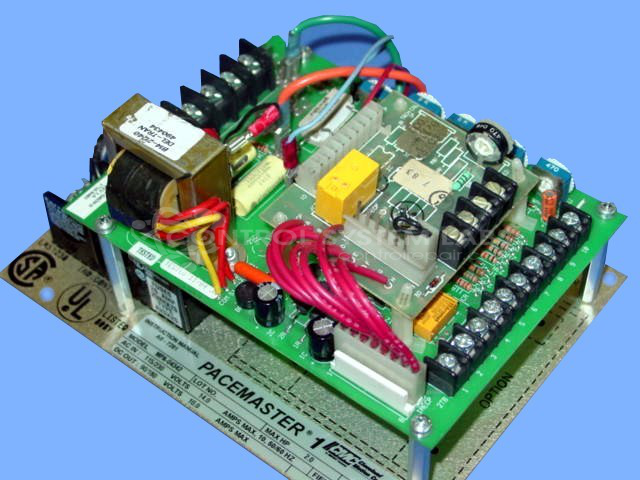

Cleveland Machine Controls MPA-04342 MO-02774-000 Pacemaster 1 DC Drive 0.25 to 2HP/Fuses/Adjustable Jog

Repair

Repair Price: $ 676.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/58977/image_1920?unique=3af392c
  • Condition

Purchase Price: $ 0.00 $ 0.00 676.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 40266
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: MPA-04342 MO-02774-000
Series: Pacemaster 1

Common Failures

Product failures primarily involve missing fuses, defective power components, and faulty connections to the option board. Another common issue is the welder being used without a ground clamp, which causes grounding through the electrical box and results in no voltage output from the board.

Repair Approach

Repairs typically include the replacement of fuses, capacitors, and power modules. Defective power components and damaged wires are also addressed. Units are tested following repair.

Testing & Quality

Repaired units undergo testing, including verifying DC power supplies and the operation of the Jog option board. Main boards are tested for output stability from full off to full on. Additional functionality tests involve using a function generator across varying frequencies, with extended operational testing.

Service and repair your broken Cleveland Machine Controls part


We can repair your Cleveland Machine Controls model MPA-04342 MO-02774-000 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
