Repair Price: $ 594.00
Purchase
CSL Part Number: 10056

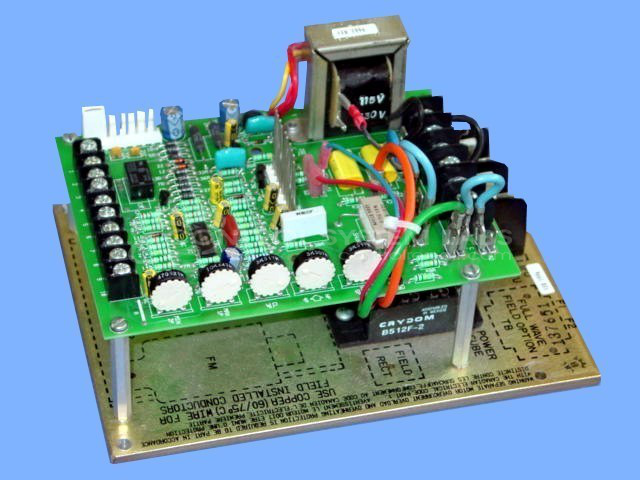

Product Overview: The Pacemaster 1 DC Drive is a fractional horsepower DC motor controller rated for 0.25 to 2 HP applications. It provides adjustable armature voltage control for DC motors, typically operating with 110VAC or 220VAC input and producing 90VDC or 180VDC output to the motor armature, plus separate field voltage. This drive is commonly used in paper processing machinery and other industrial equipment requiring variable speed control of small DC motors. The MPA-04342 model includes input fuses and can be configured for different voltage ratings through internal jumper settings.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: MPA-04342
Series: Pacemaster 1
Common Failures
Common issues reported with this unit include input fuses opening frequently and loss of armature voltage output to the motor while field voltage remains present. In some cases, fuses may open initially and then stop opening while armature voltage remains absent.
Repair Approach
Repairs may involve replacing defective components such as transistors and integrated circuits. Correct installation of main fuses is also important for proper operation. Units are tested following repair work to verify functionality.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model MPA-04342 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
