Repair
Repair Price: $ 594.00
Purchase
CSL Part Number: 10057

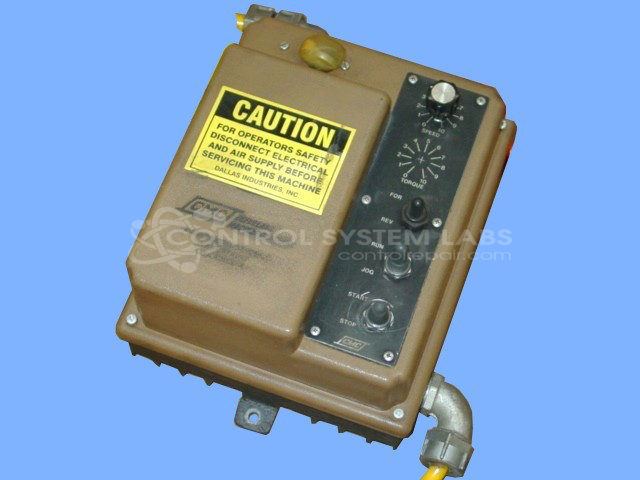

Product Overview: The Pacemaster 1 MPB-04343 is an enclosed DC motor control for motors ranging from 0.25 to 2 horsepower. It regulates armature and field voltage for DC brushed motors, providing forward/reverse operation, variable speed control via potentiometer, and start/stop functionality. This drive is commonly used in paper handling and industrial machinery applications requiring precise speed control of fractional to 2HP DC motors at voltages up to 180VDC.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: MPB-04343
Series: Pacemaster 1
Common Failures
Common issues identified in the repair history include defective components such as relays, capacitors, and power modules. Relays may fail, causing symptoms such as moving at a single speed or requiring the start button to be held in. Capacitors with high equivalent series resistance (ESR) are another issue we have observed, sometimes leading to power supply problems. Additionally, power modules have been found shorted, affecting operation.
Repair Approach
Repairs typically involve replacing faulty relays, capacitors, and power modules to address functional issues. Preventative replacement of components may also be performed to enhance reliability. In some cases, additional repairs include cleaning and structural work, such as securing loose parts with screws and nuts.
Testing & Quality
After repairs, units undergo testing, including burn-in tests with various motor loads and voltage tests in different operational modes. These tests verify that functions such as start/stop mechanisms and direction switching are working correctly. Units are reviewed for consistent operation to meet quality standards before being returned.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model MPB-04343 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
