CSL Part Number: 70285

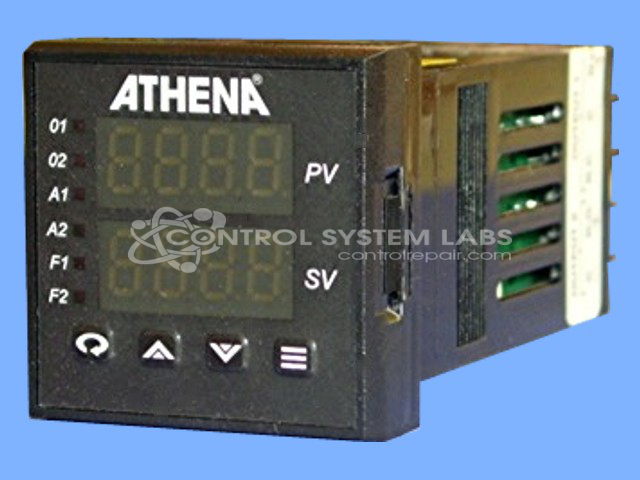

Product Overview: The Athena 16C is a 1/16 DIN digital temperature controller manufactured by Conair for use in chiller and process cooling applications. It features a compact panel-mount design with membrane overlay interface and accepts thermocouple inputs (typically Type J) for precise temperature monitoring and control. Commonly found in plastics processing equipment, industrial chillers, and temperature-critical manufacturing systems, it provides digital setpoint control with relay or solid-state outputs for heating or cooling loads.
Category: Chiller Controls
Manufacturer: Conair
Manufacturer Synonyms: IPEG, Franklin
Manufacturer Part Number: 16C-T-T-T-23-FL
Series: Series 16C Temperature Controller
Also Known As(AKA): 20975301 CONAIR P/N
We repair the full line of Athena products.
Common Failures
This product may experience issues where, upon being powered on, it flashes on and off repeatedly and fails to function. Common causes can include a defective overlay and switch components.
Repair Approach
The repair process typically involves replacing the faulty overlay and case, along with replacing necessary switch components. All electrolytic capacitors are also replaced as a preventative measure to support the reliability of the unit.
Testing & Quality
After repair, calibration is verified using a J Thermocouple, and the unit is checked in degrees Fahrenheit. Quality assurance includes extended burn-in testing with a load at a dedicated testing station. Units are tested to verify full functionality before being returned to customers.
Service and repair your broken Conair part
We can repair your Conair model 16C-T-T-T-23-FL in our facility. Let our skilled technicians get your Conair back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
