Repair
Repair Price: $ 724.00
Purchase
CSL Part Number: 4477

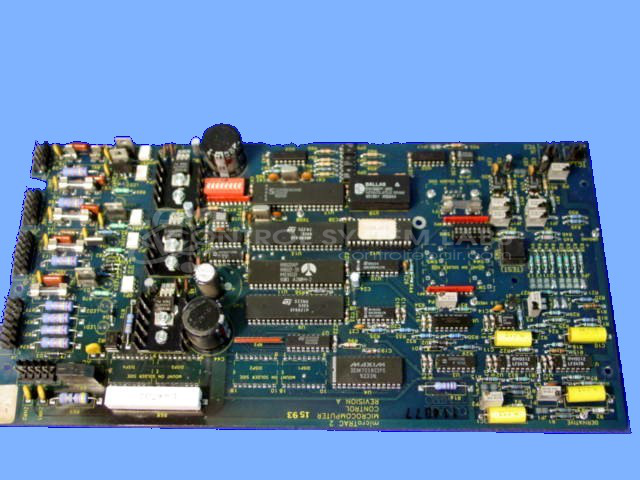

Product Overview: The Conair microTrac 2 is a microprocessor-based temperature control panel designed for plastic processing equipment, primarily water temperature control units (WTCUs) and portable chillers. It provides precise temperature regulation with dual thermocouple inputs (typically Type K), digital display, and relay outputs for controlling heating, cooling, pump, and ventilation functions. The controller features tactile pushbutton controls for setpoint adjustment and system operation, an integrated NVSRAM for configuration and calibration data retention, and operates on multi-voltage power supplies with onboard regulation. Common configurations support temperature ranges from 32°F to 250°F with factory or field calibration options.
Category: Chiller Controls
Manufacturer: Conair
Manufacturer Synonyms: IPEG, Franklin
Manufacturer Part Number: microTrac 2
Series: microTrac 1, 2, and 3
Also Known As(AKA): 09002779
Requires sending in your board for exchange repair without "rush" fees.
Common Failures
Common issues reported include non-functional control buttons, power supply problems, and calibration inaccuracies. These issues may be traced to worn buttons, aged NVSRAM modules, corroded connectors, or failed capacitors and fuses.
Repair Approach
Repairs typically involve replacing defective components such as push buttons, capacitors, and connectors. Preventative replacement of NVSRAM modules may be performed due to aging. Corroded traces are repaired, and missing fuses are installed as needed. For temperature regulation concerns, calibration procedures are applied.
Testing & Quality
After repairs, units undergo testing including burn-in procedures at specific temperature settings. Functional aspects are verified with attention to calibration standards. Units that meet testing criteria are returned to service.
Service and repair your broken Conair part
We can repair your Conair model microTrac 2 in our facility. Let our skilled technicians get your Conair back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
